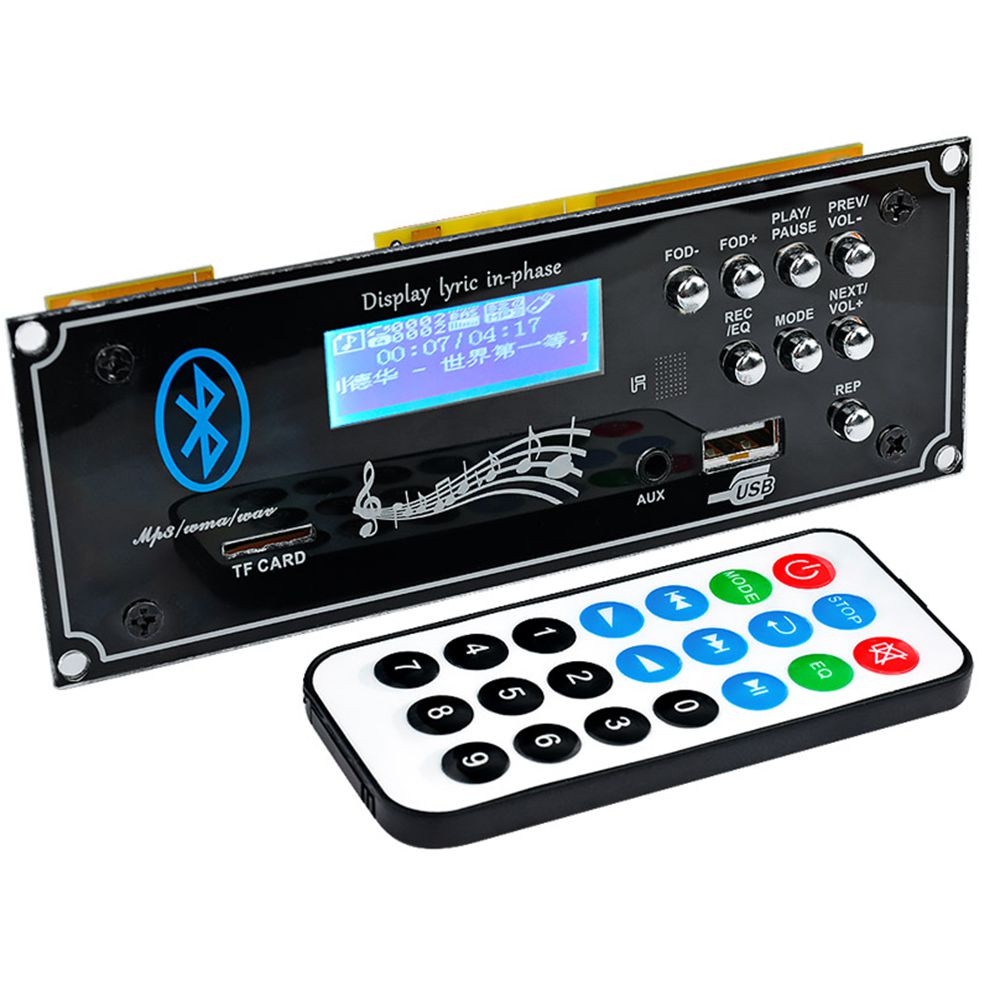

2.1 Bluetooth Car Audio Decoder Board MP3 Player Decoding Module with USB Aux DIY for Amplifiers Board Home Theater

Availability: In stock

Regular Price: IDR217,232.00

Special Price IDR120,684.00

You Save: IDR96,548.00 (44%)

Quick Overview

Power Supply: DC 12V power supply

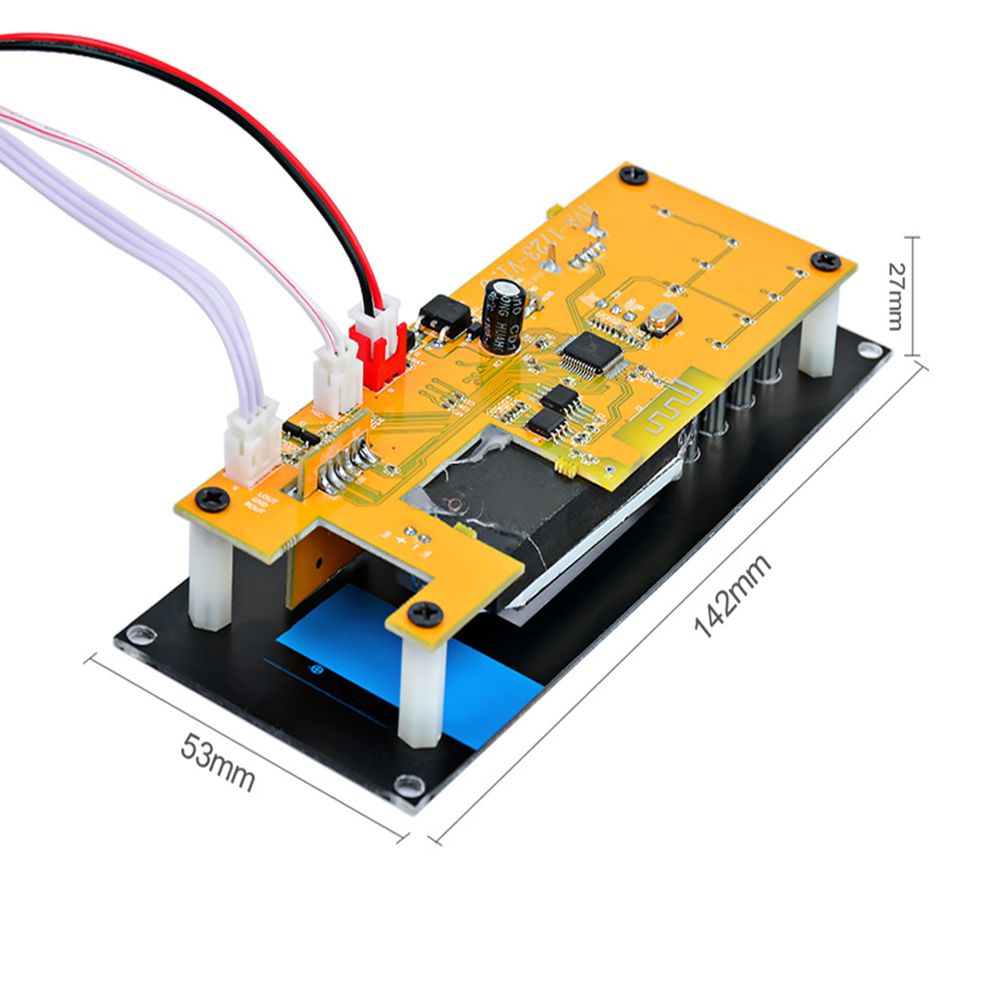

Appearance size: 142.5 x 53mm
Out Ranger: ≥500MV
Rated input: 12V/0.2A
Rated power consumption: USB playback current 80mA
Other status 80MA
Operating temperature: -20 ° C~60 ° C
1. Support stereo Bluetooth speaker function, mobile phones and other devices can send music to speakers (A2DP) via Bluetooth;
2. Support the speaker terminal to control the up and down music through the Bluetooth control mobile phone and other devices, adjust the volume;
3. Bluetooth is based on CLASS2 power level, adopts Bluetooth2.1+EDR specification, compatible with Bluetooth 3.0 and below, and the transmission speed can reach 3Mbit/s;
4. Supports playing music on SD/MMC Card and U disk. The music formats are: MP3, WMA, WAV (excluding 丨icence);
5. Support FM, the frequency band is: 87MHZ~108MHZ;
6. Support AUX input, external audio source can access the speaker through AUX and adjust the volume on the speaker;
7. Support speaker status broadcast, can play various speaker status and modify the broadcast language according to user needs;
8. Support function switching hotkey (one in Card, u disk, AUX, IN, FM, Bluetooth playback) (MODE button on the remote control, function switch button);
9. Support firmware encryption;
10. Support USB connection to the computer for firmware upgrade;
11.FAT16, FAT32, ExFAT/Fat64 file system support;
12. Support directory level: 8 level subdirectories;
13. Number of supported files: The number of files is not limited in the single directory, and the total number of music files is less than 9999;
14. Support SD/MMC;
15. Support USB2.0, fully compatible with USB1.1;
16.32 level volume (volume level configurable);
17. Support UX/FM/MIC recording;
18. Support 128*64 dot matrix screen display working status and playing time as well as song name and singer name, lyrics synchronization;
19.S stream (DC) input for 9V to 12V power supply;
20. More security: anti-power reverse
Packing Included:
1 x 2.1 Bluetooth Car Audio Decoder Board

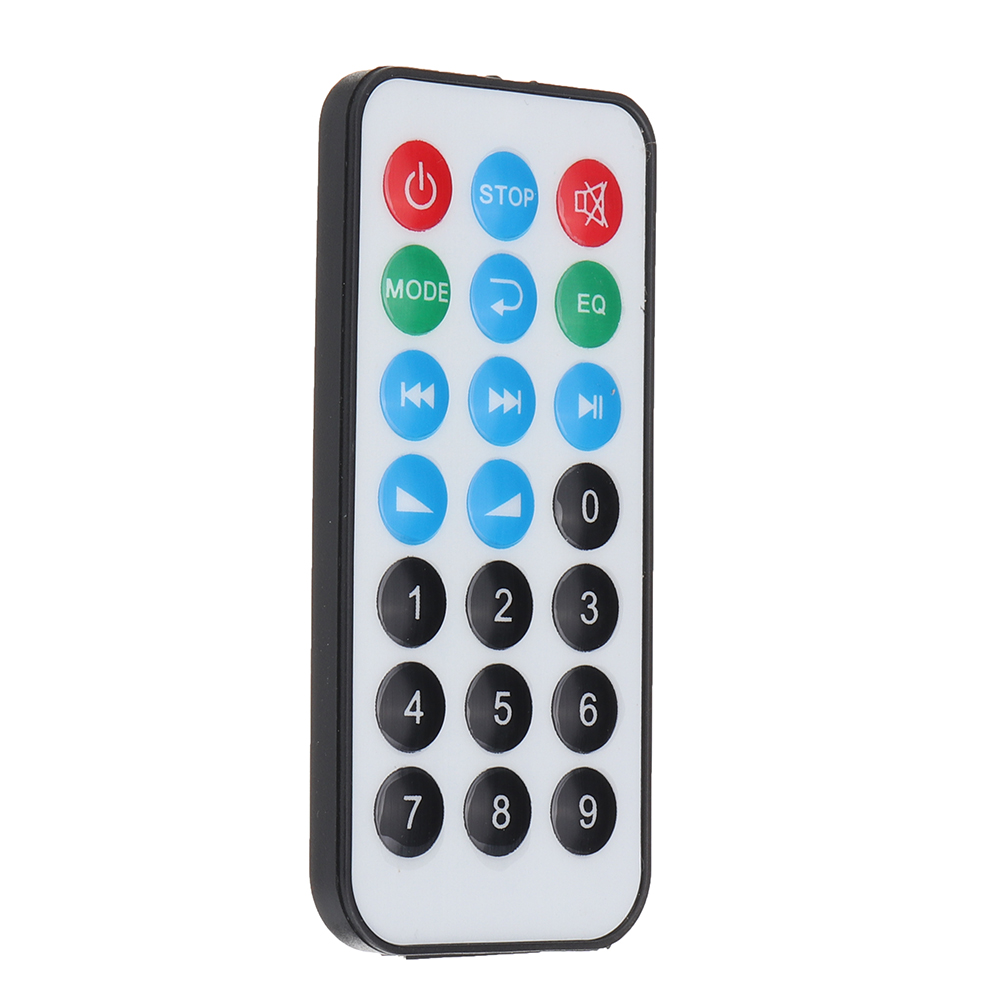

1 x Remote controller


Additional Information

SKU GI/BG/1530100
Weight 0.0650
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
