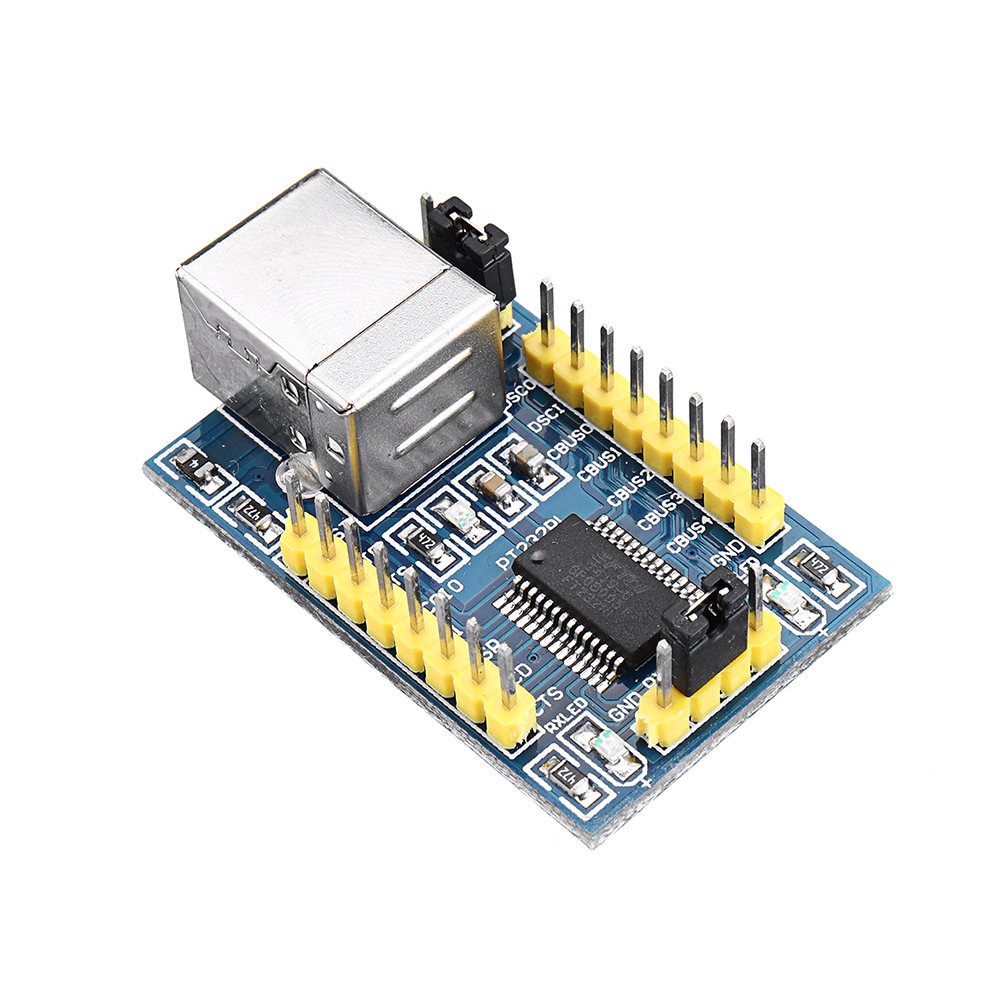

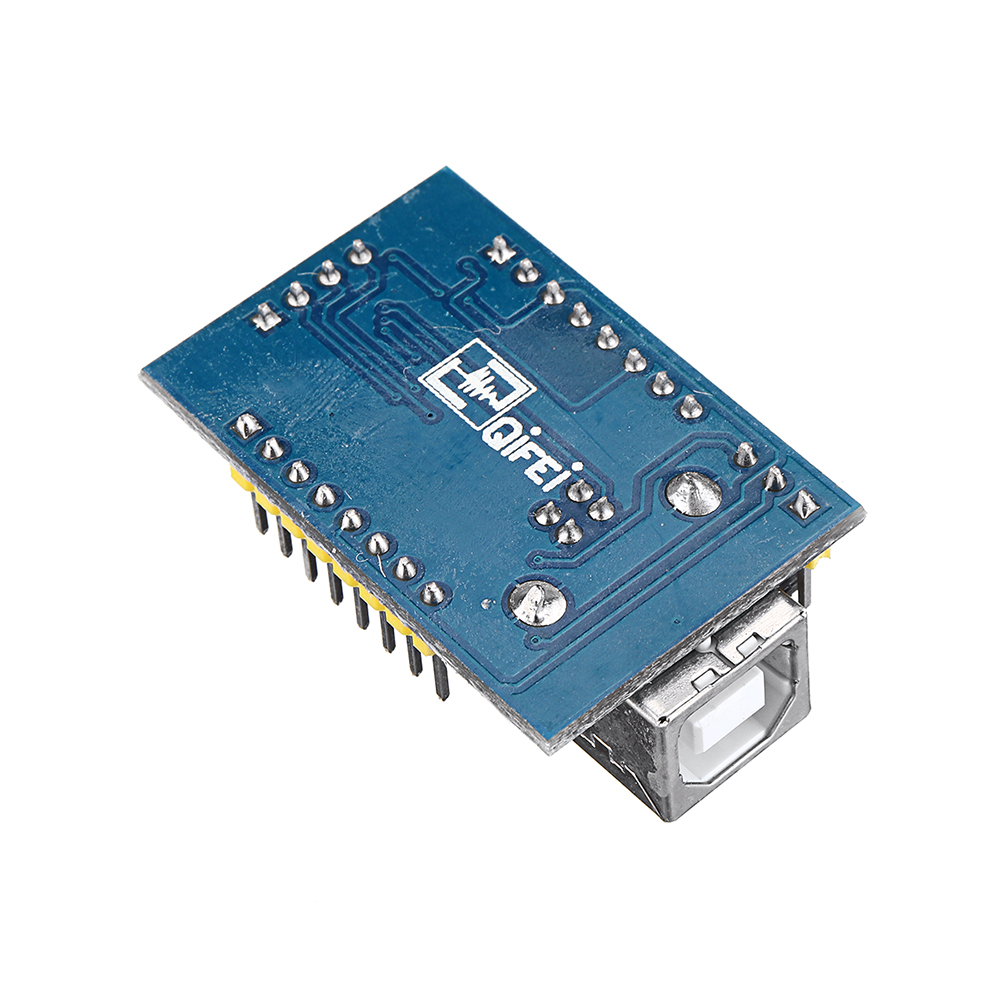

FT232R FT232RL Module USB to Serial Port USB to TTL Adapter Module With 1.5 m Cable 3.3V or 5V

Availability: In stock

Regular Price: IDR263,283.00

Special Price IDR146,268.00

You Save: IDR117,015.00 (44%)

Quick Overview

Overview:

In addition to the USB2.0FT232RL chip, the module also puts the output port TX and RX to the tail, which is more convenient for practical operation. At the same time, it is equipped with VCC and GND for output, which is more general. In addition, it is equipped with a 3.3V voltage output and a 5V voltage output selection for convenient multi-purpose use! USB power supply with overcurrent protection, add 500MA self-recovery fuse to protect your computer and equipment! More stable performance! !

Features:

- The output cable pin is defined as: VCC TXD RXD GND
- Adopt FT232RL chip;
- Lead all signal ports of the FT232RL chip
- RXD/TXD transceiver communication indicator;
- USB powered, optional 5V or 3.3V interface level
- FT232R windows driver;
- Serial debugging software
- Module size: 43MM*25MM*12MM

Introduction to FT232R:

 With the development of computer technology, the parallel port and serial port slowly disappeared on the PC, and now there are few parallel ports on the desktop. But for engineers, both the parallel port and the serial port are essential interfaces, especially the serial port. For computers without a serial port, the most convenient solution is to use a USB to serial port chip to virtualize a serial port. Many manufacturers have such chips. From the perspective of stability, the FT232 series is the most reliable, and it can be used for peace of mind. The debugger does not have to worry about the blue screen.
The FT232R chip is a single-chip solution that typically uses essentially no peripherals. The EEPROM, USB matching resistors, and EEPROM for placing product information are already integrated. The FT232R has some more useful features. See the FT232R data sheet for details.

CLICK to DOWNLOAD:FT232R


Data Sheet Download: http://www.ftdichip.com/Products/ICs/FT232R.htm

Package Included:

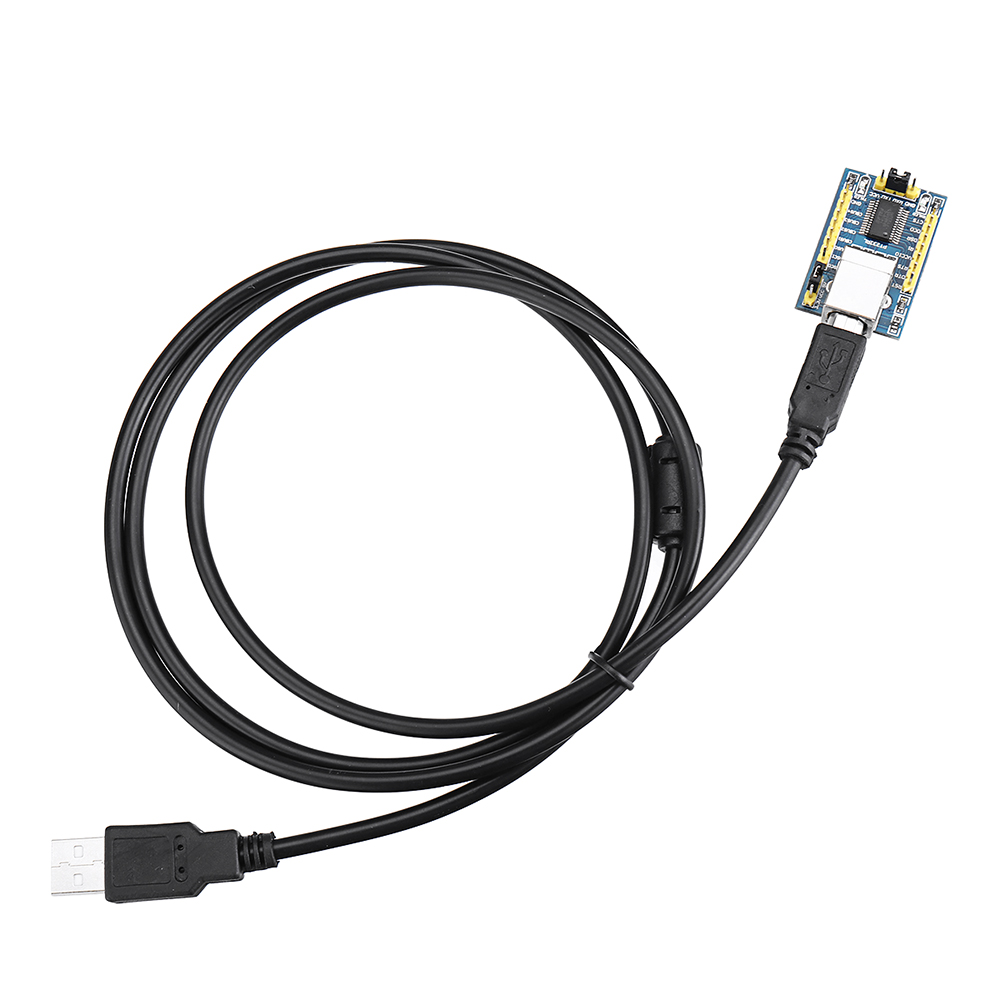

1 x FT232RL USB to TTL Adapter Module
1 x 1.5m Cable







OR

Additional Information

SKU GI/BG/1460355
Weight 0.0350
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
