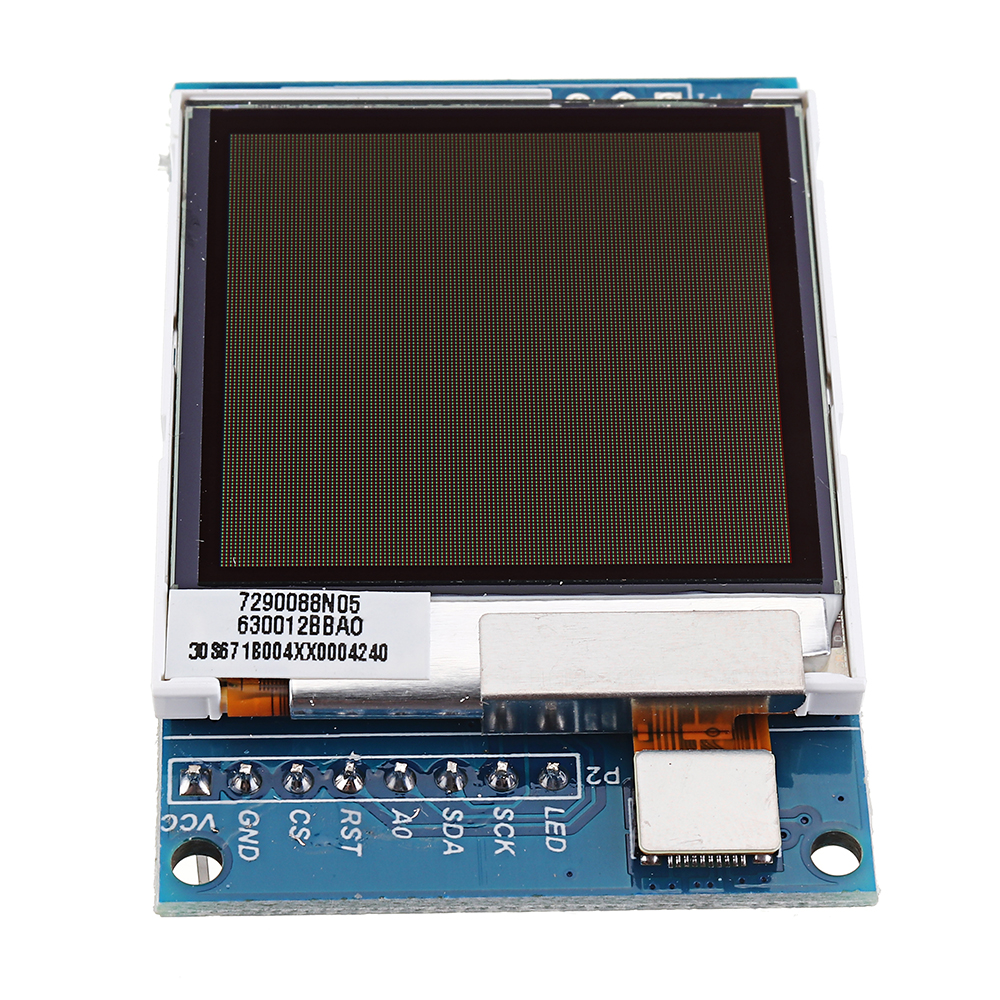

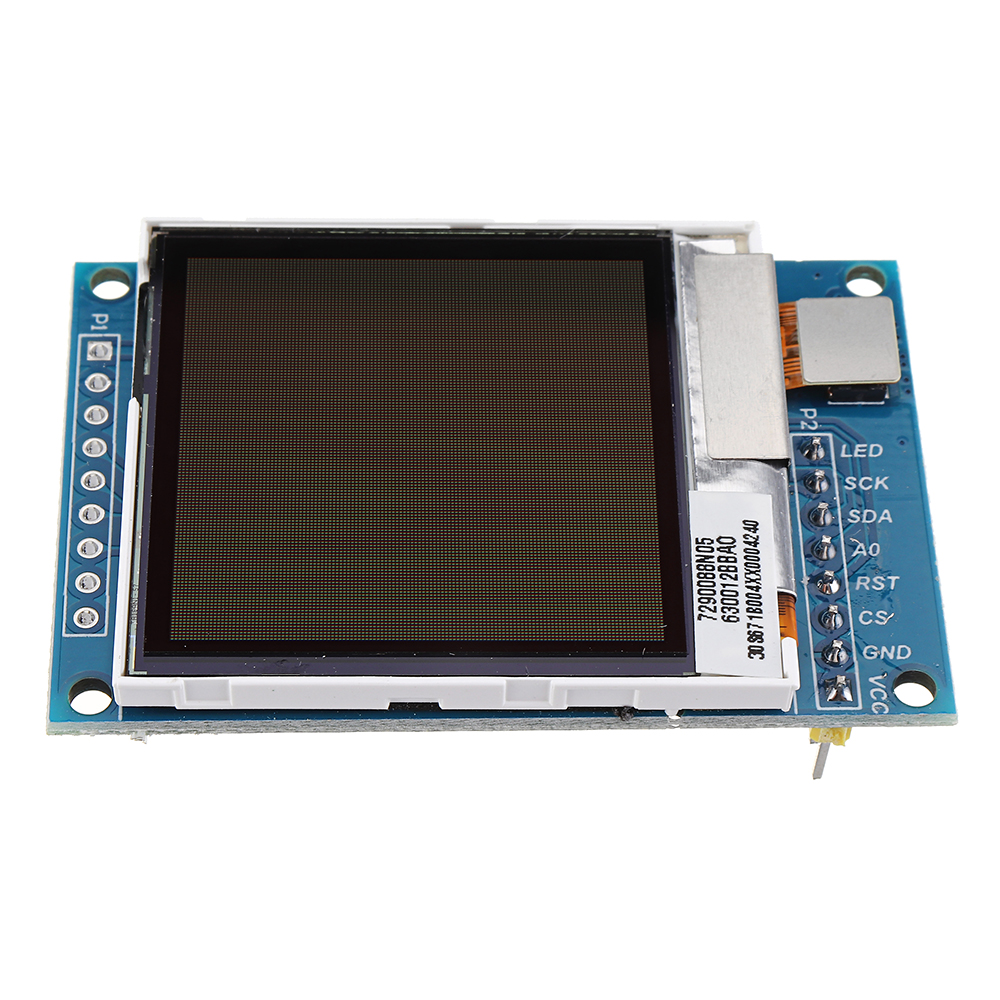

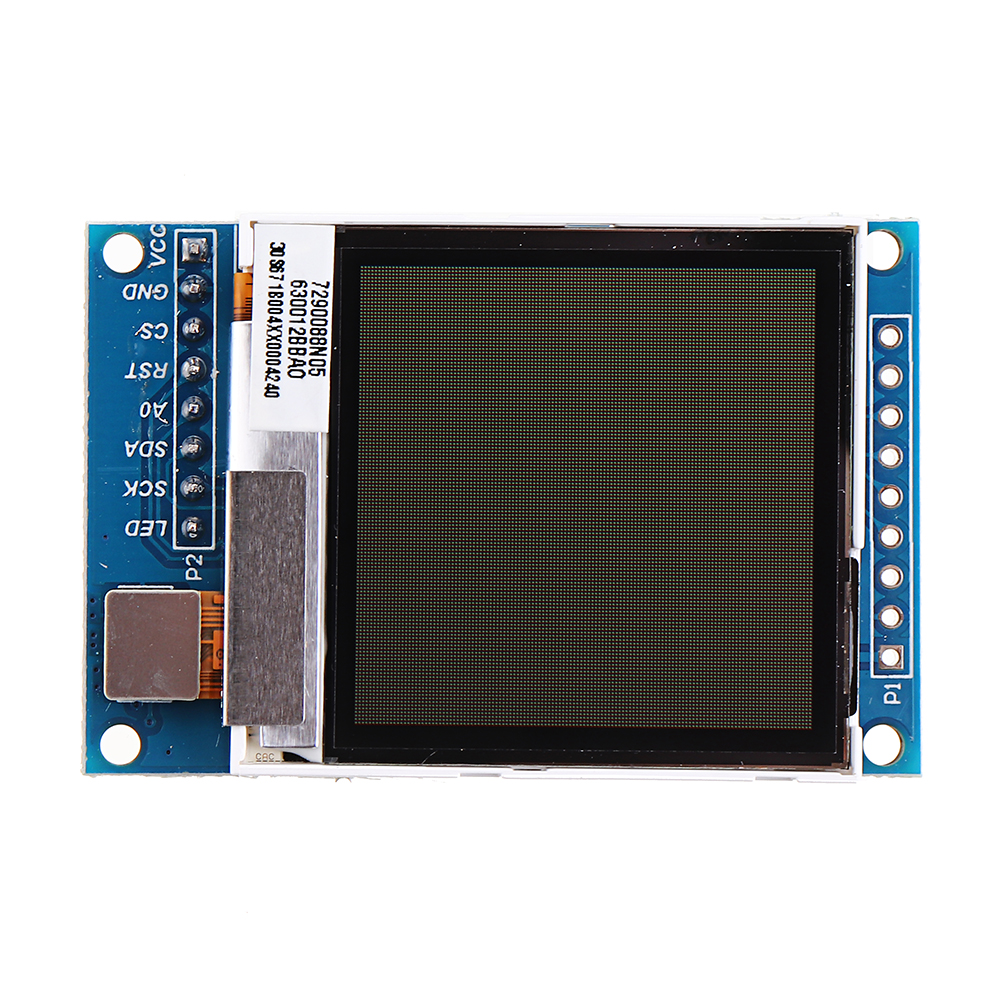

1.6 Inch Transflective TFT LCD Display Module 130X130 Sunlight Visible SPI Serial Port 3.3V 5V for Arduino

Availability: In stock

Regular Price: IDR174,357.00

Special Price IDR96,865.00

You Save: IDR77,492.00 (44%)

Quick Overview

Features:

• 1.6-inch color screen, support 65K color display, display rich colors
• Semi-transparent LCD, superior performance, clearly visible under strong light
• SPI serial bus, only a few IO can light up the display
• Onboard 3. 3V/5V power conversion chip, compatible with 3. 3V and 5V voltage levels
• Operating temperature range is industrial grade (-20-70 ° C)
• Military-grade process standards, long-term stable work
• Provide underlying driver technical support
• Support backlight control

Specificatoins:

Driver: SSD1283A
Resolution: 130*130
Working voltage: 3.3V/5V
Viewing angle: >60°
Display size: 28.86*28.86mm
Module size: 35.4*53.82*1.6mm
Module interface: 4-wire SPI
Power consumption: about 100mA when fully lit, about 10mA when fully off

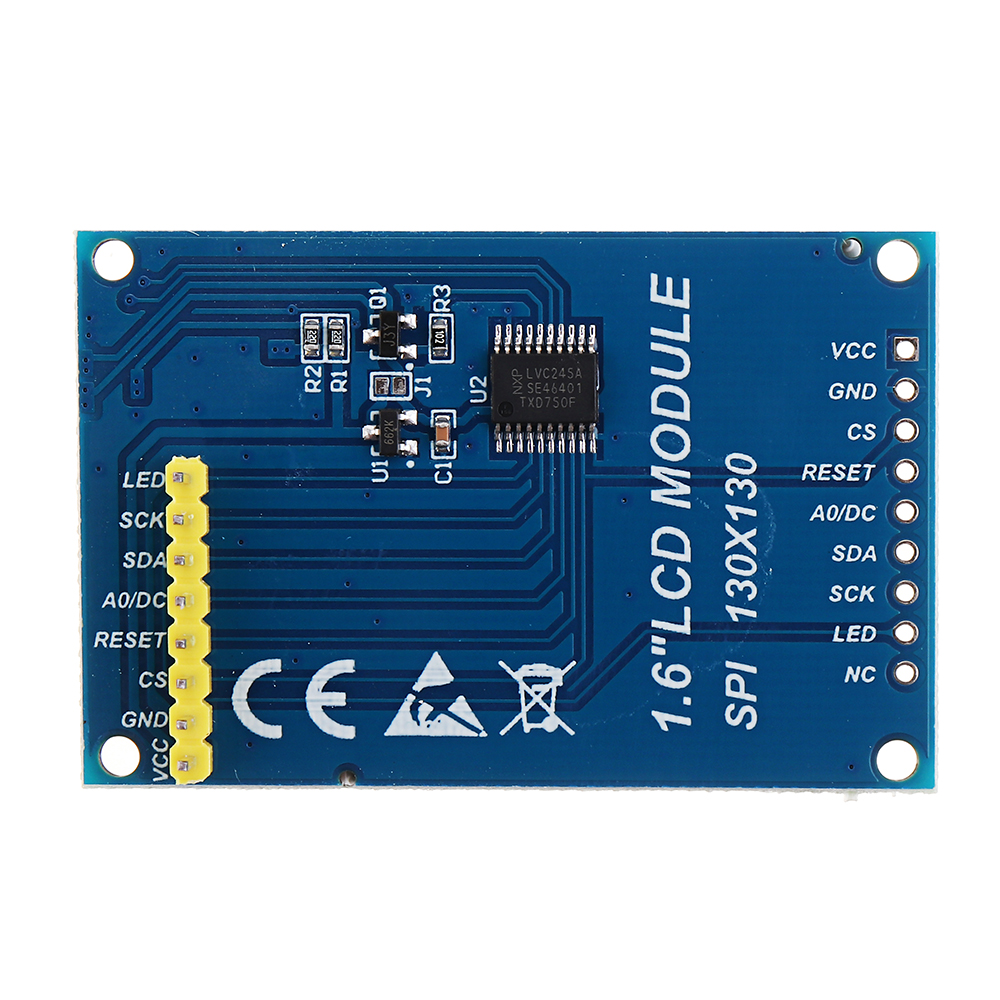

Pin:

NumberPinMeaning
1GNDLCD power supply (ground)
2VCCLCD power supply (positive)3.3V/5V
3CSLCD chip select signal
4RESETLCD reset signal
5A0/DCLCD register / data selection signal
6SDASPI bus data signal
7SCKSPI bus clock signal
8LEDBacklight control signal (high level lighting, if you do not need control, please connect 3.3V)

Package Included:

1 x 1.6 Inch Transflective TFT LCD Display Module 130X130







OR

Additional Information

SKU GI/BG/1488336
Weight 0.0170
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
