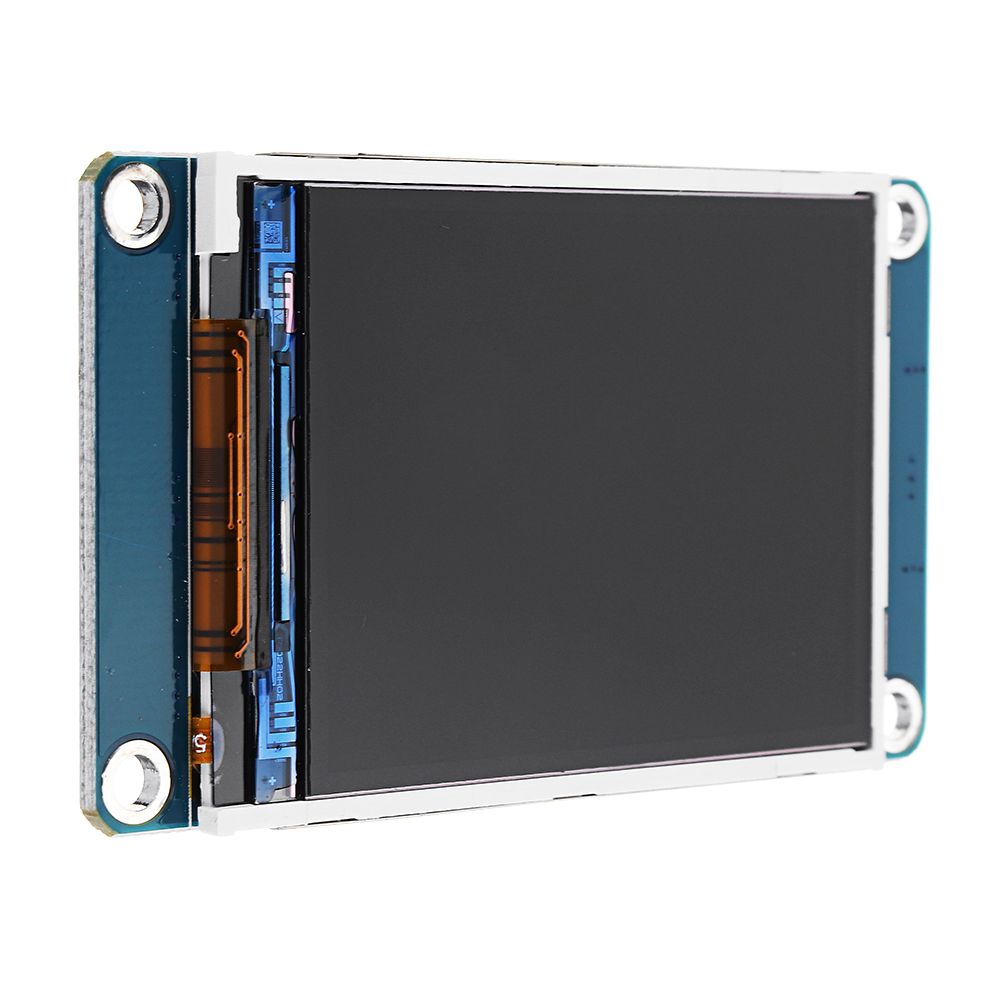

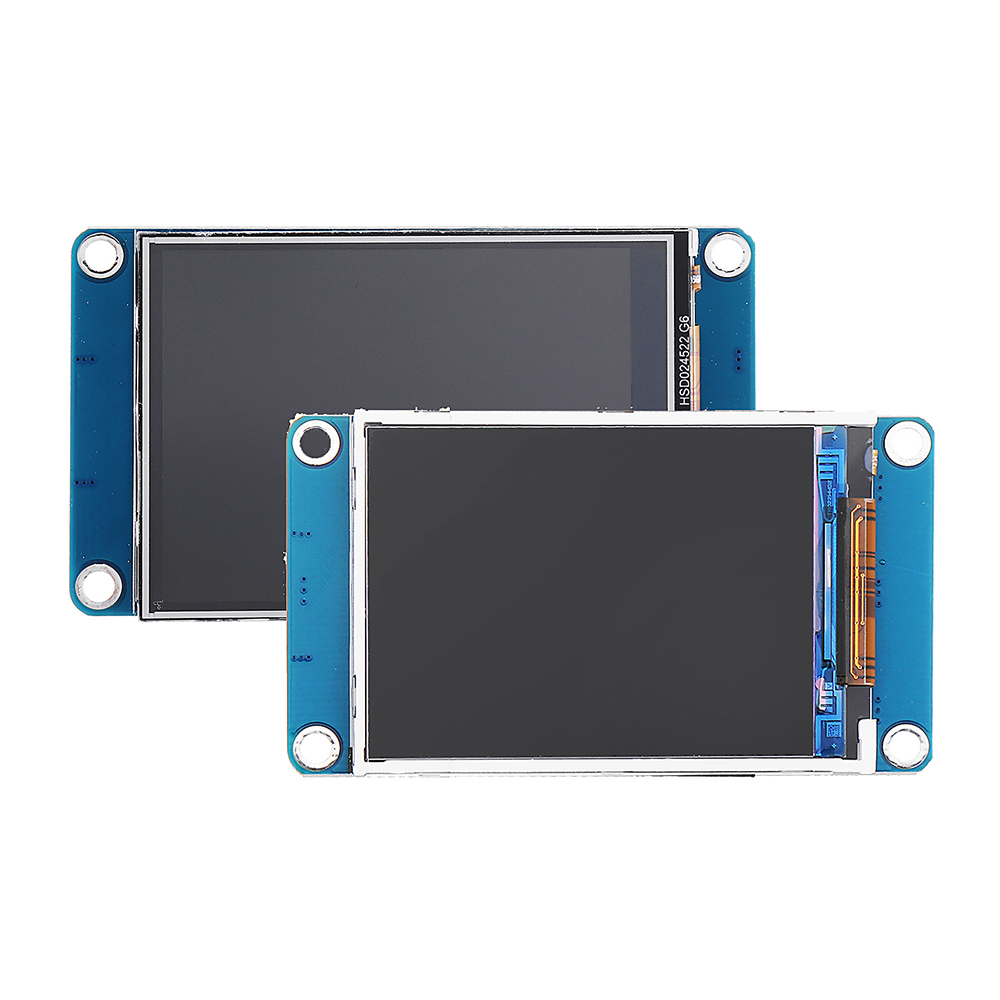

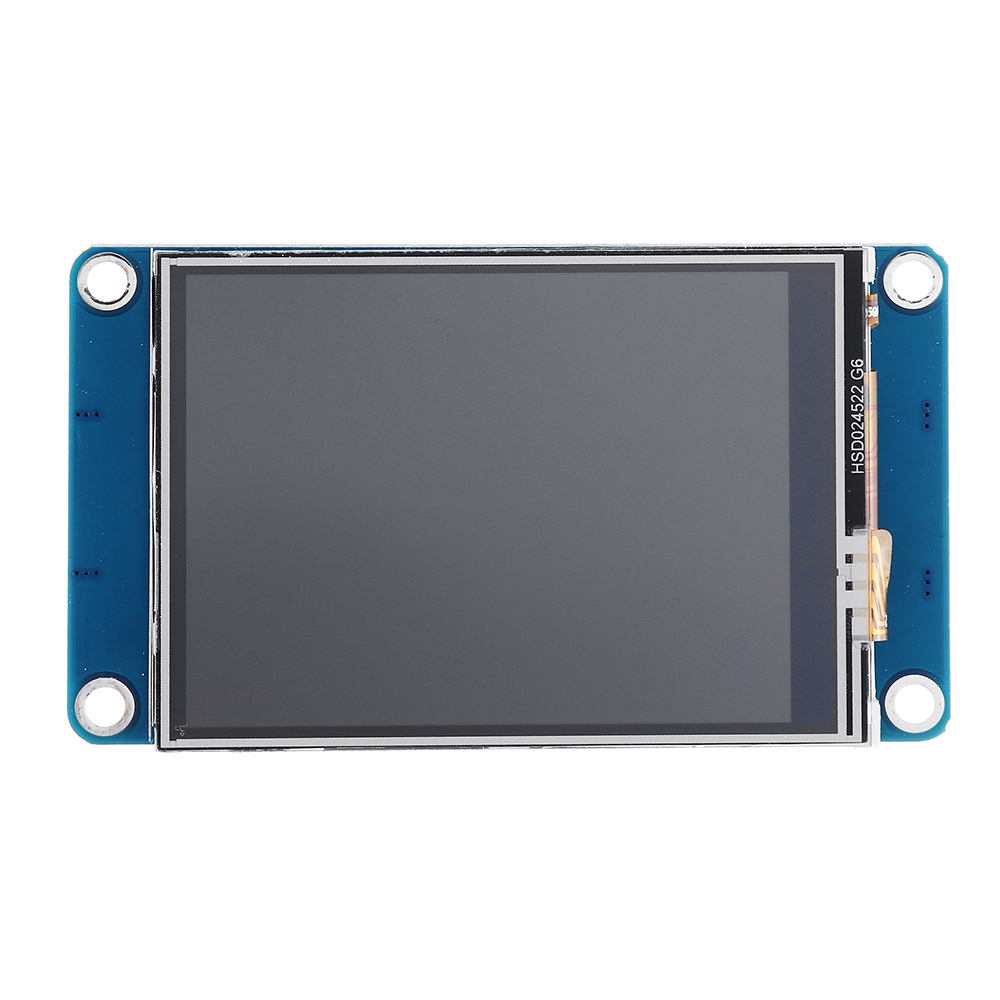

2.2 Inch / 2.4 Inch RGB USART HMI Serial Touch Screen Smart Character GPU TFT LCD Display Module 240*320

Availability: In stock

Regular Price: IDR295,042.00

Special Price IDR163,912.00

You Save: IDR131,130.00 (44%)

Quick Overview

More document click to download: RGB USART LCD Display Module

Features:

- 16-bit true color RGB display
- Support multiple configuration controls: button control, progress bar control, text control, pointer control
- With font: you can customize any WINDOWS font
Support basic GUI instructions
- Support picture format BMP, JGP, JPEG, PNG
- 100-level backlight dimming, sleep mode, sleep current 20mA, support for touch wake-up function.
- Serial command control: The production of the human-machine interface is completed by the host computer software. The lower MCU only needs to use the serial port and device interaction instructions to improve the development efficiency.
- Multiple debugging methods: Support serial port download and SD card download, support PC-side analog debugging, support simulator and device synchronous debugging.
- Automatic online upgrade: The upper software automatically upgrades online. When the device downloads the latest resource files compiled by the upper software, the firmware is automatically upgraded.

Specifications:

Touch mode: no touch (2.2inch) / resistive touch (2.4inch)
Resolution: 320*240
Communication interface: USART serial interface
Interface level: 3.3/5V TTL level
Working voltage: 4.75-7 V
Working temperature: -20-70 °C
Flash: 4MB
RAM space: 3584 BYTE

Package Included:

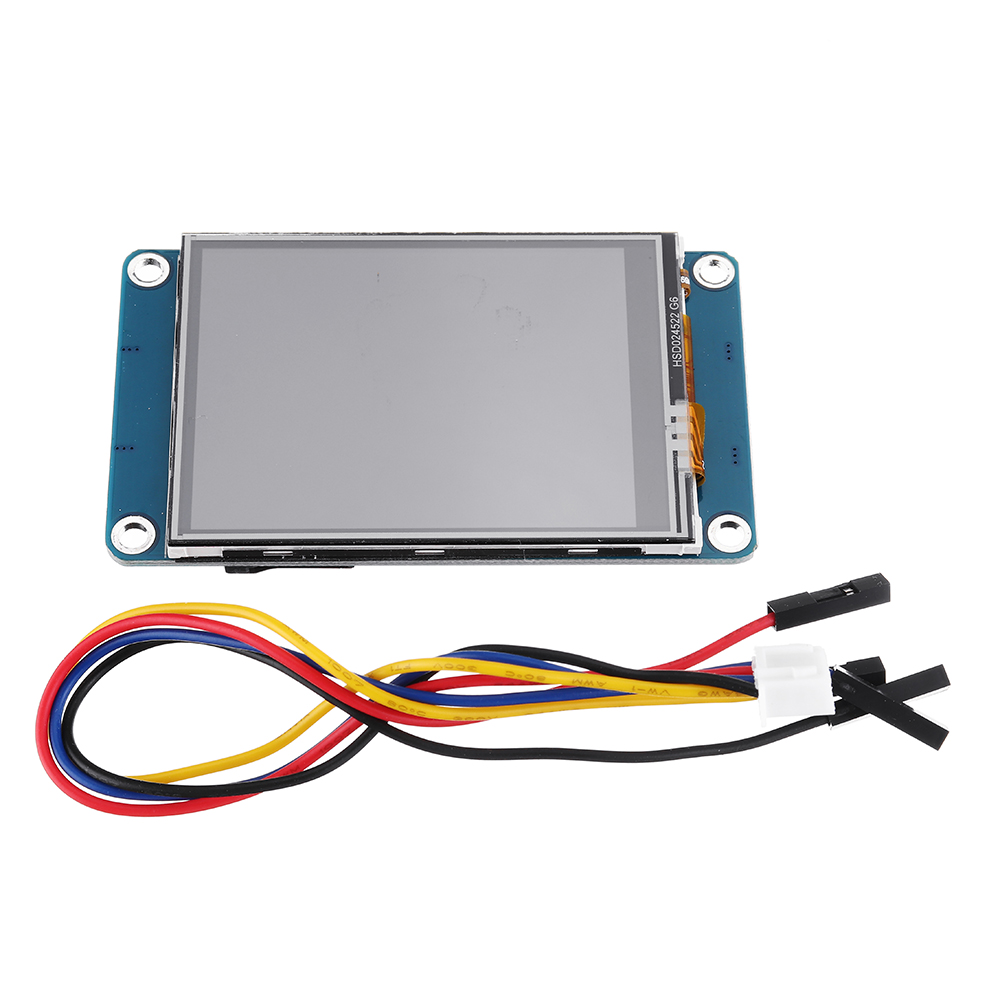

1 x 2.2 / 2.4 Inch TFT RGB USART LCD Display Module









OR

Additional Information

SKU GI/BG/1489826
Weight 0.0290
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
