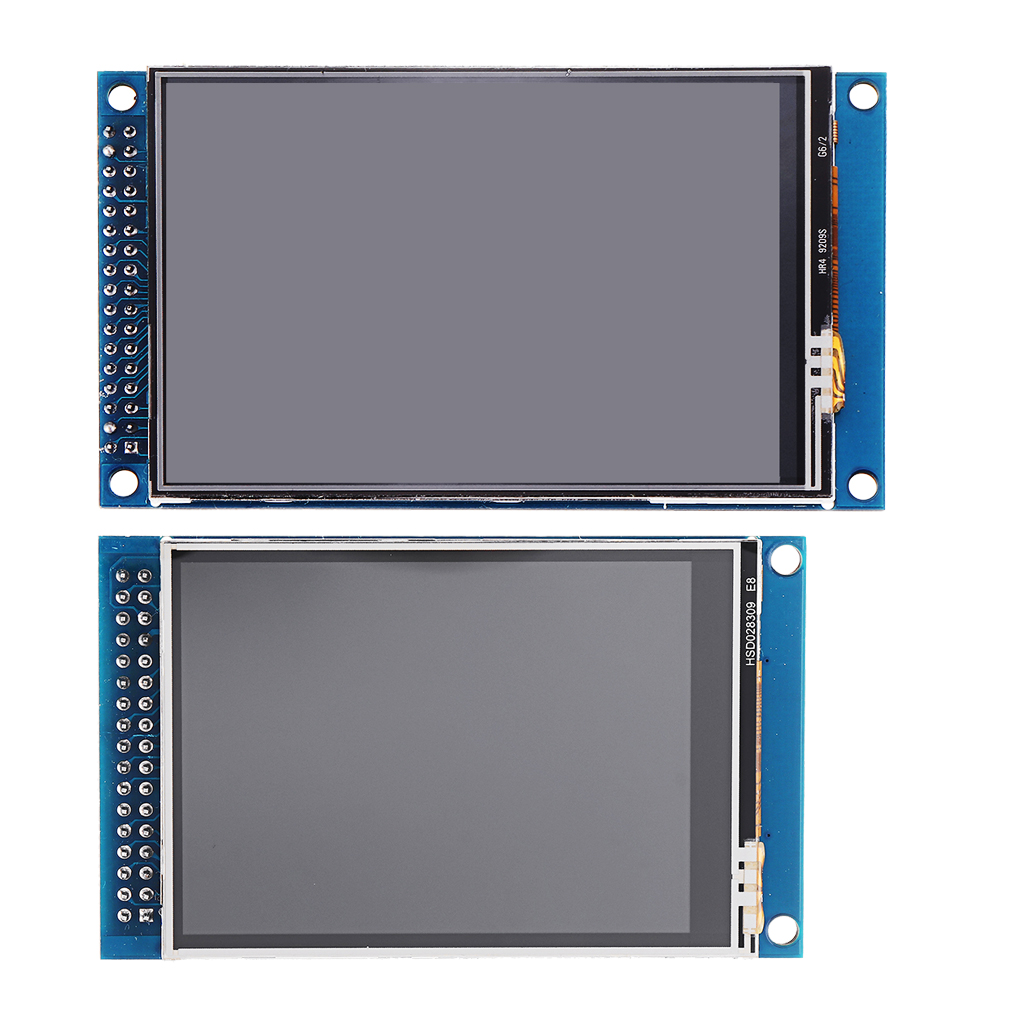

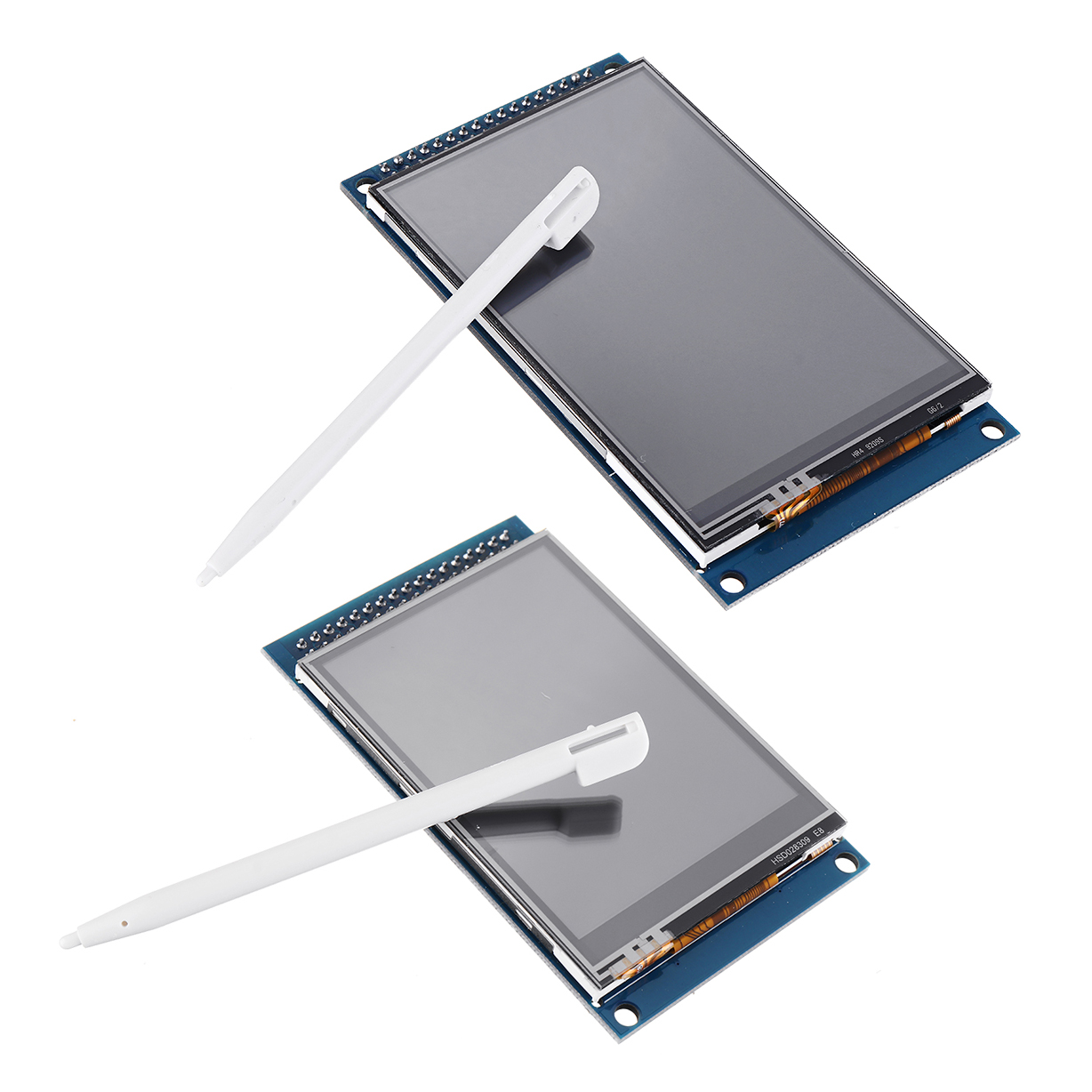

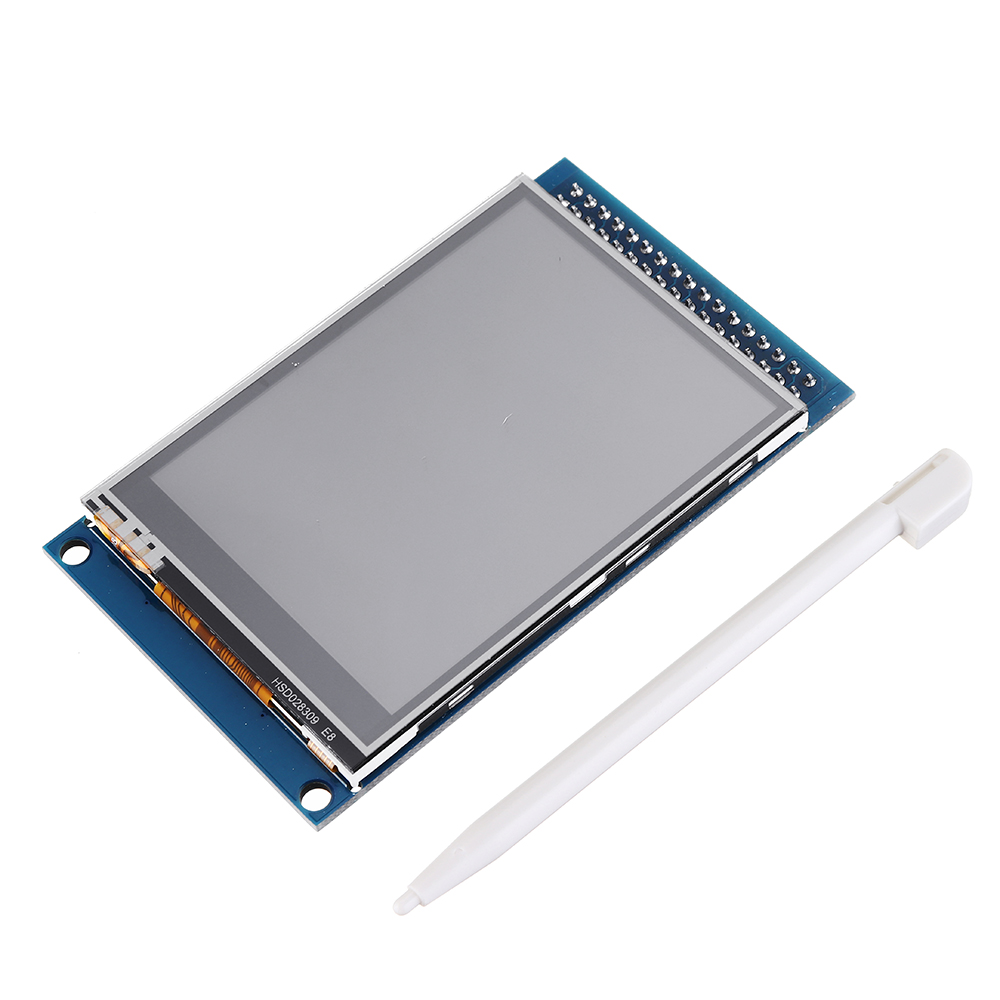

2.8 Inch/3.5 Inch TFT Colorful HD LCD Display Module with Sensor Touch 320x240 480x320 for Arduino

Availability: In stock

Regular Price: IDR329,975.00

Special Price IDR183,319.00

You Save: IDR146,656.00 (44%)

Quick Overview

Features:

- 320x240 / 480x320 resolution.
- 16-bit color (65000 colors) display support.
- High brightness backlight with good backlight brightness and low power consumption.
- High quality touch, high sensitivity and high linearity.
- Made of custom yellow copper-plated pins. 'Beautiful and durable.
- Universal interface for the full range of ALIENTEK development boards.

Specifications:

LCD size: 2.8 / 3.5 inches
Display area: 57.6*47.2mm /  48.96*73.44 mm
Driver IC:ILI9341(2.8inch)/ ILI9486(3.5 inch)
Resolution: 320*240 (RGB)
Color depth: 16 bits
Operating voltage: 3.3V or 5V
Backlight voltage: 3.3V
Pin: 34
Interface mode: 16 bits (default >/8 bits configurable
Module size:51* 82.55 mm / 56.34*98.25mm

Package Included:

1 x 2.8 / 3.5 Inch TFT Colorful HD LCD Display Module

More document click to download:







OR

Additional Information

SKU GI/BG/1489665
Weight 0.0460
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
