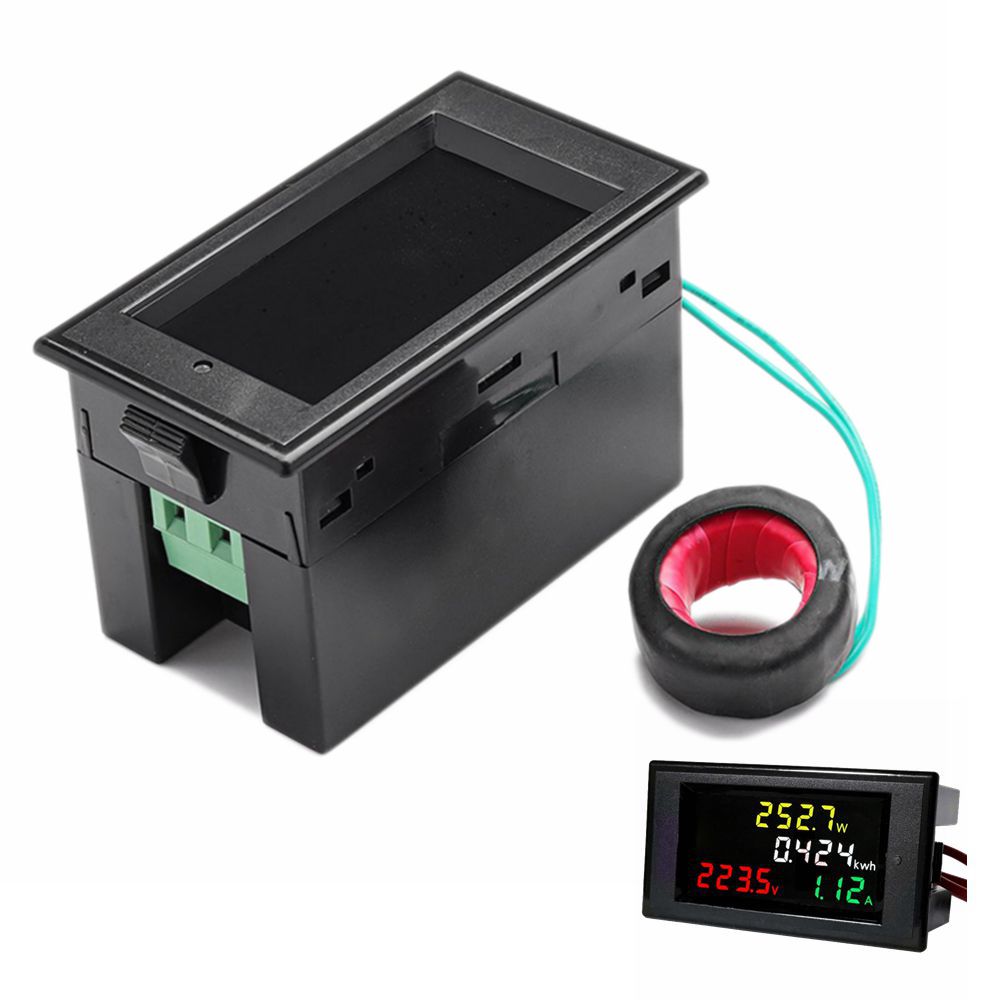

100A AC 200-450V LED Digital Voltmeter Ammeter Power Energy Voltage Current Meter Charger Tester Detector Monitor

Availability: In stock

Regular Price: IDR397,939.00

Special Price IDR221,077.00

You Save: IDR176,862.00 (44%)

Quick Overview

Specifications:

Voltage measuring range: AC 200-450V
Accuracy: 1%± 2 words
Measuring speed: 2 times/second
Working temperature: -10°~50°
Working humidity: 10~80%(No cream)
Working air pressure: 80~106kPa
Dimensions: 79 x 43 x 48mm
Installation size: 76 x 39mm
Current measuring range: AC 0A~99.99A, the current display resolution is 0.01A, when more than 100A, it will display for 100.0A
Active power range:  when the "display range" within 0-10000W, the power display range is: 0-9999.9W ; when the "display range" above 10000W, the power display range is: 10000-22000W
Electric power range: when the "display range" within 0-10000KWH, the electric power display 9999.999 ; above 10KWH, the electric power display 00000.99KWH  ;  Maximum display is: 9999999KWH

Note:

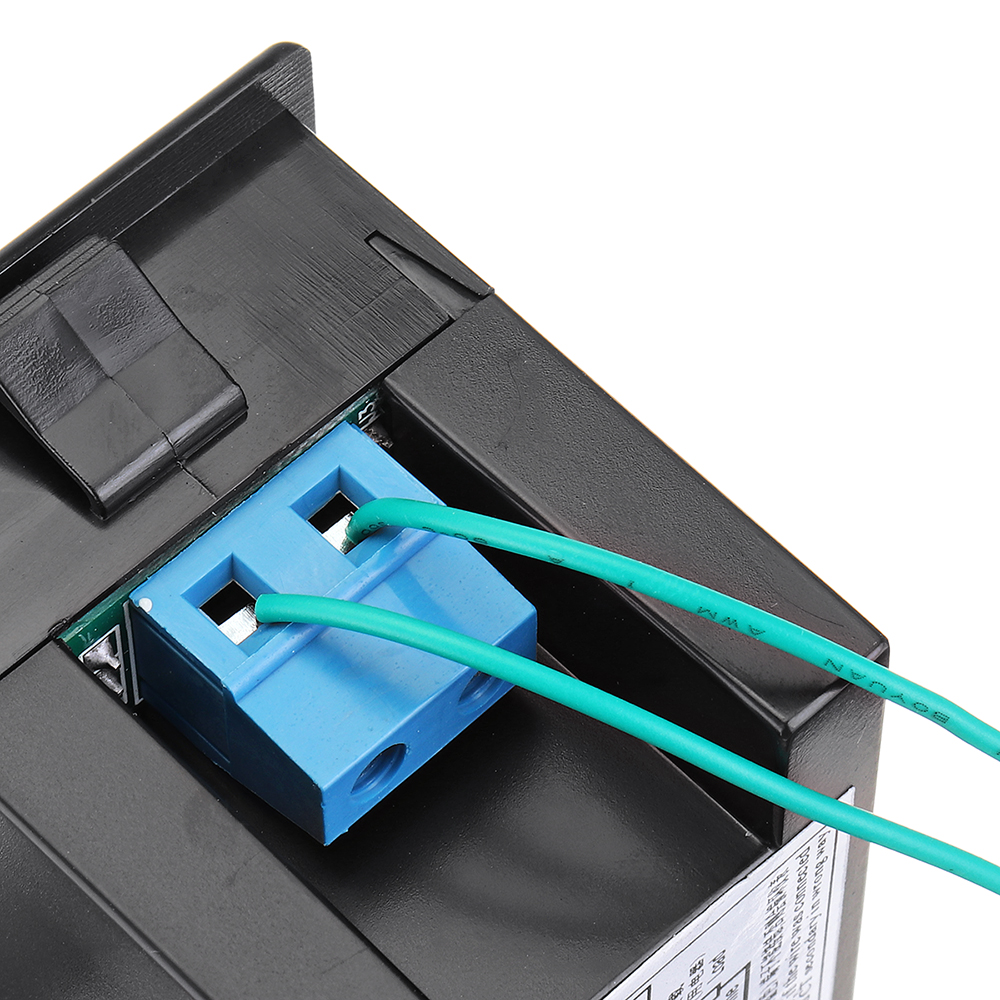

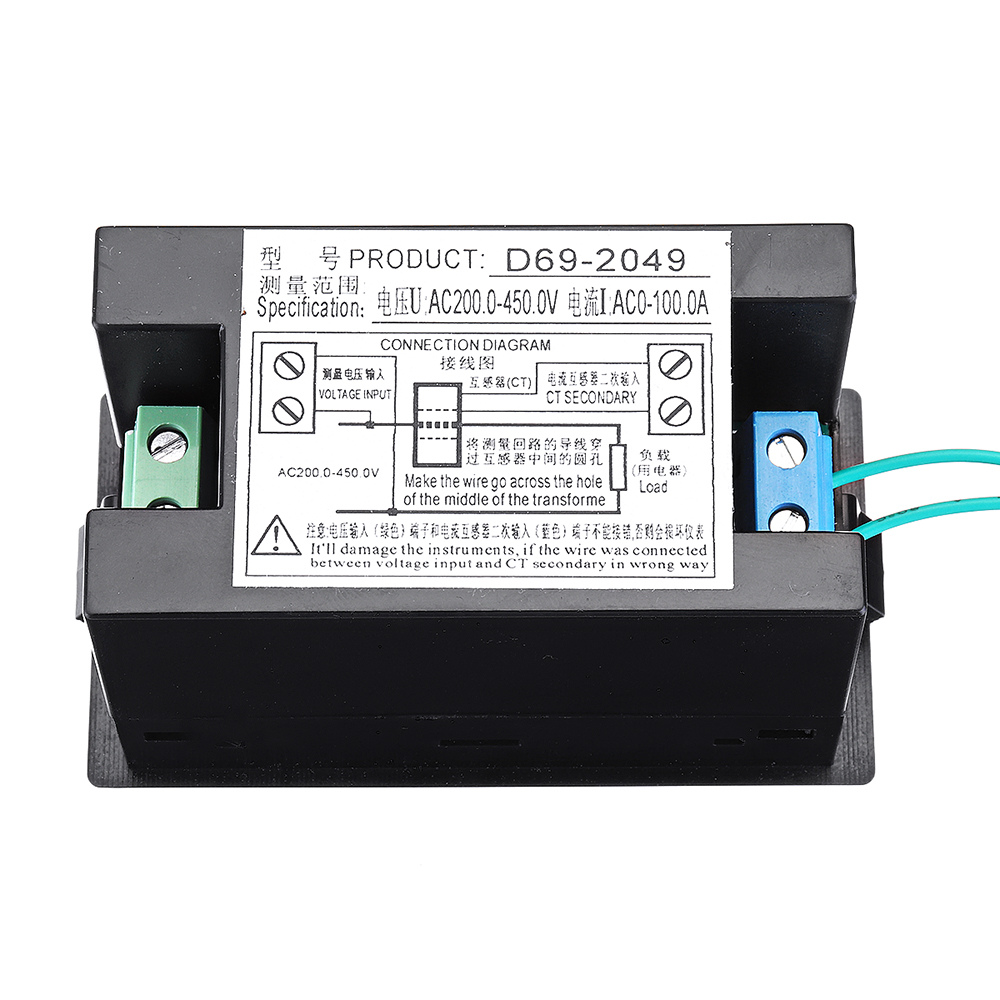

1. The voltage input (green) terminal and the current transformer secondary input (blue) wiring terminal wiring can not be wrong, otherwise the instrument will be damaged
2. This instrument is only applicable to the AC 50-60HZ mains power, can not be used for square wave, the inverter output and the correction is positive Hyun wave circuit measurement, or instrument will be damaged
3. The installation process can not be squeezed instrument meter LCD screen, otherwise there will be garbled / broken code situation


Package Include:

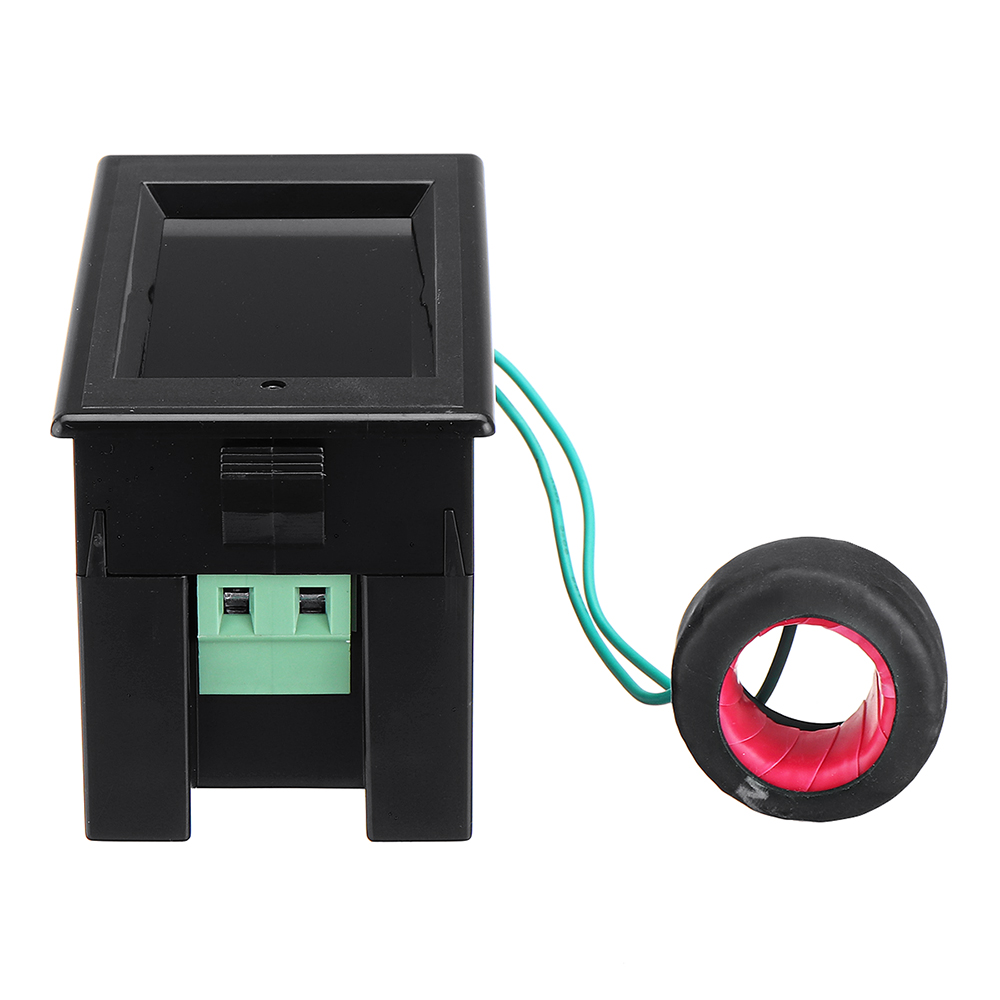

1 x Digital Voltmeter Ammeter

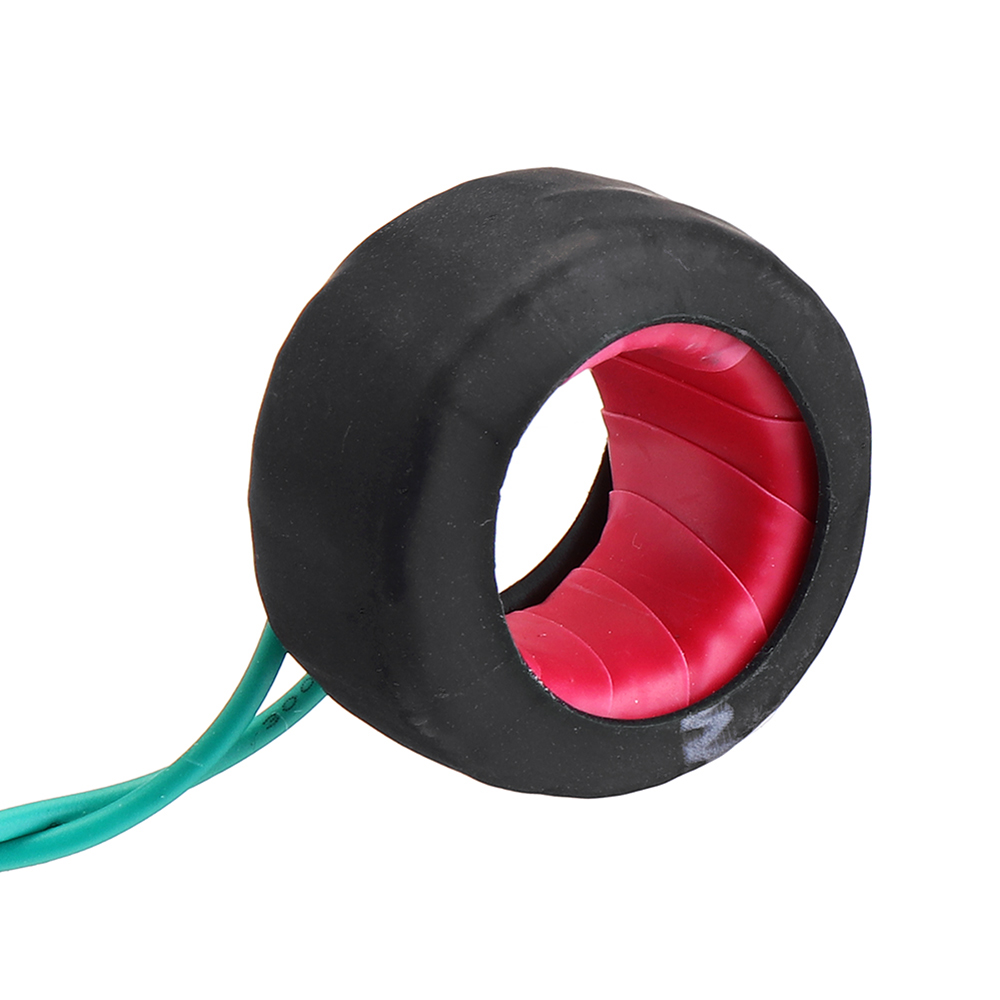

1 x CT









OR

Additional Information

SKU GI/BG/1435166
Weight 0.1040
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
