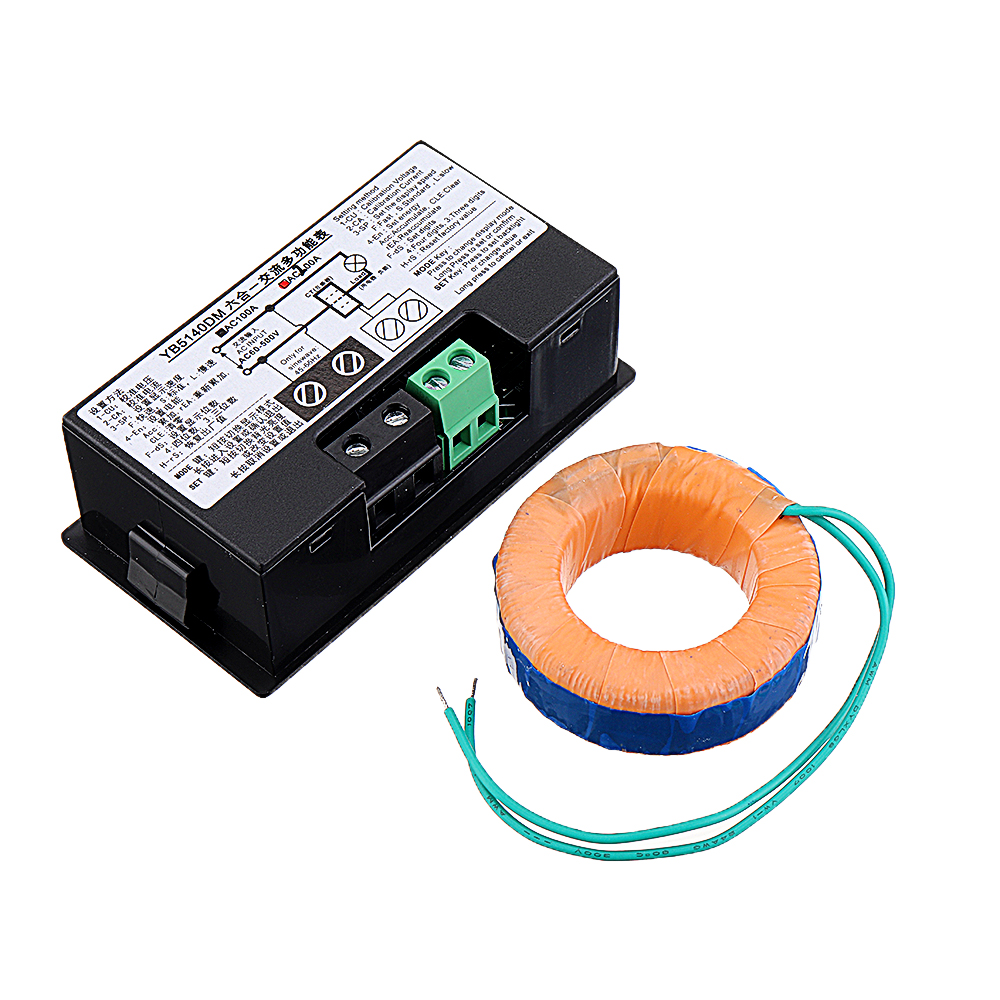

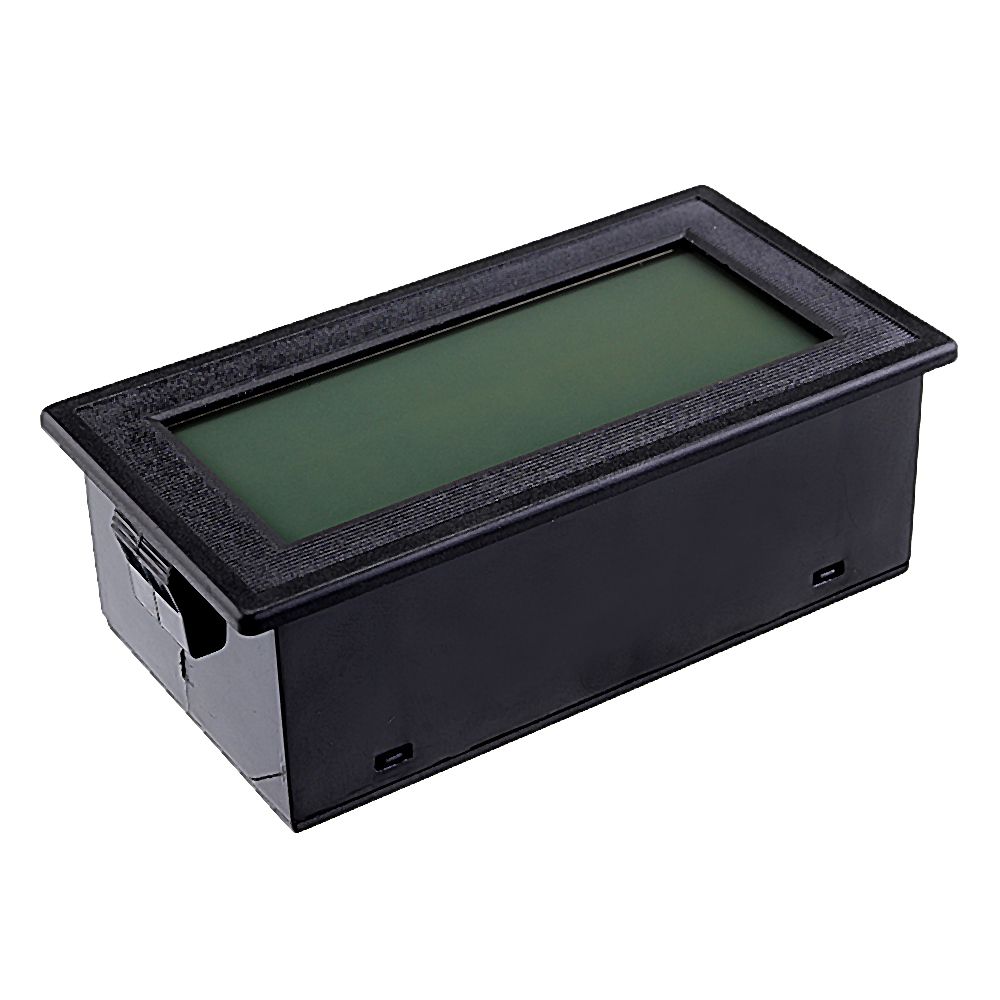

6-in-1 AC60-500V 100A/200A Three-phase AC Voltage Ammeter Blue Backlight Digital Display Multi-function Power Frequency

Availability: In stock

Regular Price: IDR412,231.00

Special Price IDR229,017.00

You Save: IDR183,214.00 (44%)

Quick Overview

1. Six-in-one electrical parameter measurement: AC voltage, current, active power, frequency, power factor, electrical energy
2. Power clear mode: press key to clear, automatically clear

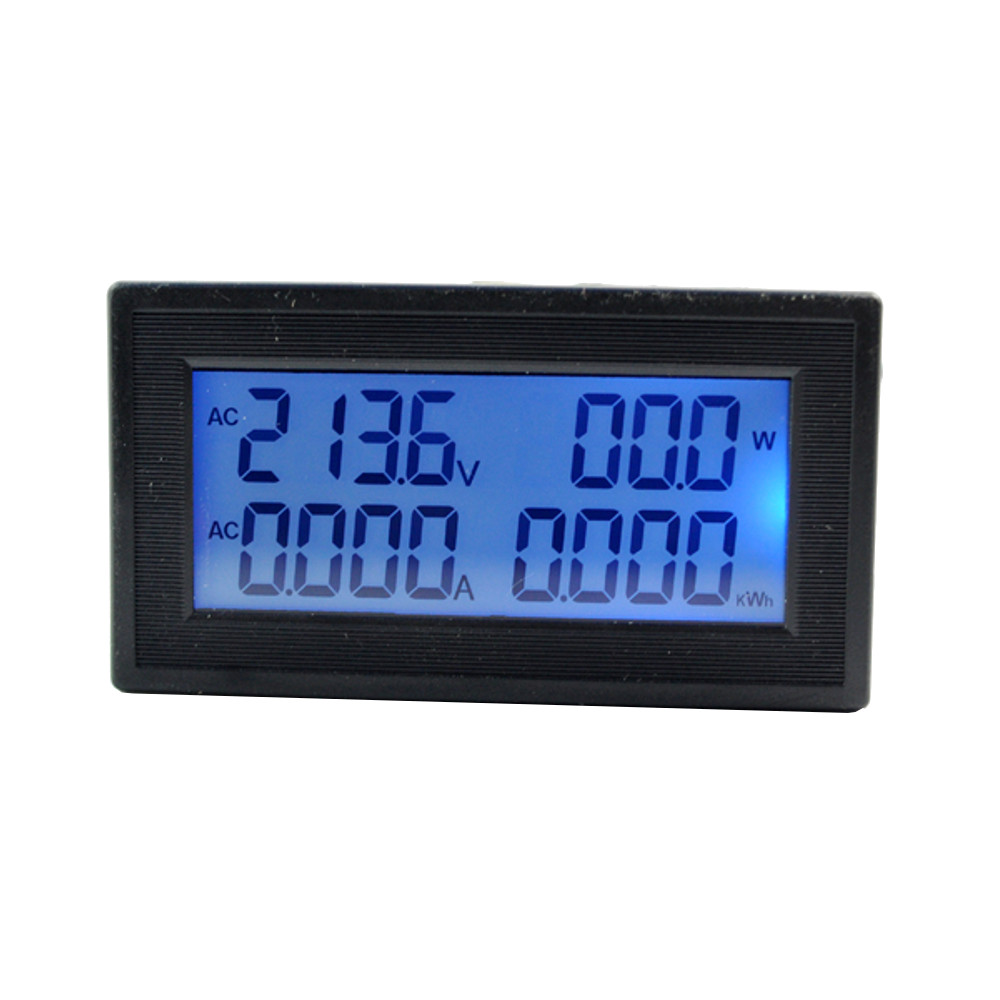

3. Display type: LCD display, blue backlight: one screen multi-display, a total of 7 display modes are available
4. Blue backlight brightness adjustable: highlight, low light, no light
5. The button inside the meter can calibrate the voltage, current error and other options.
6. Display value update speed is optional: fast, standard, slow, suitable for different working environments

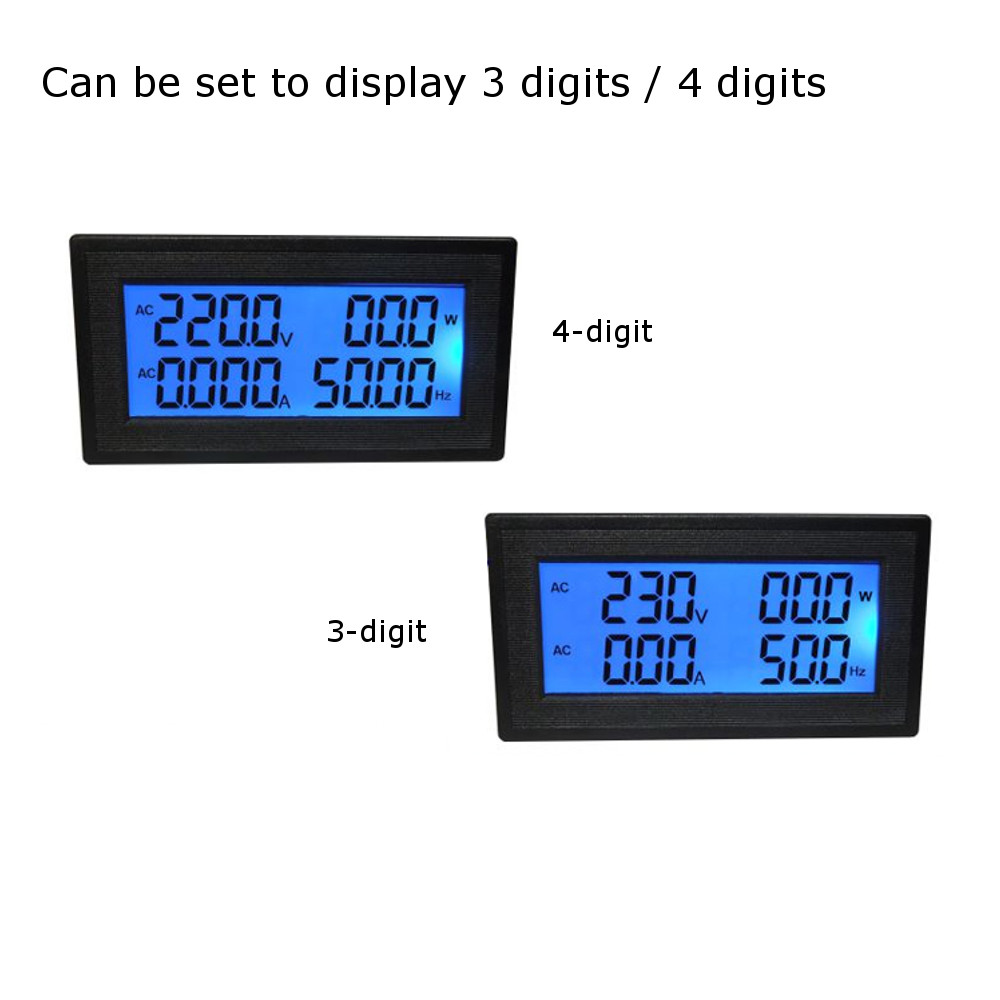

7. Display accuracy can be set: 3 digits, 4 digits: different requirements apply
8. Power-down data saving function
9. AC voltage, current, power and electric energy are all designed by automatic shift of decimal point.

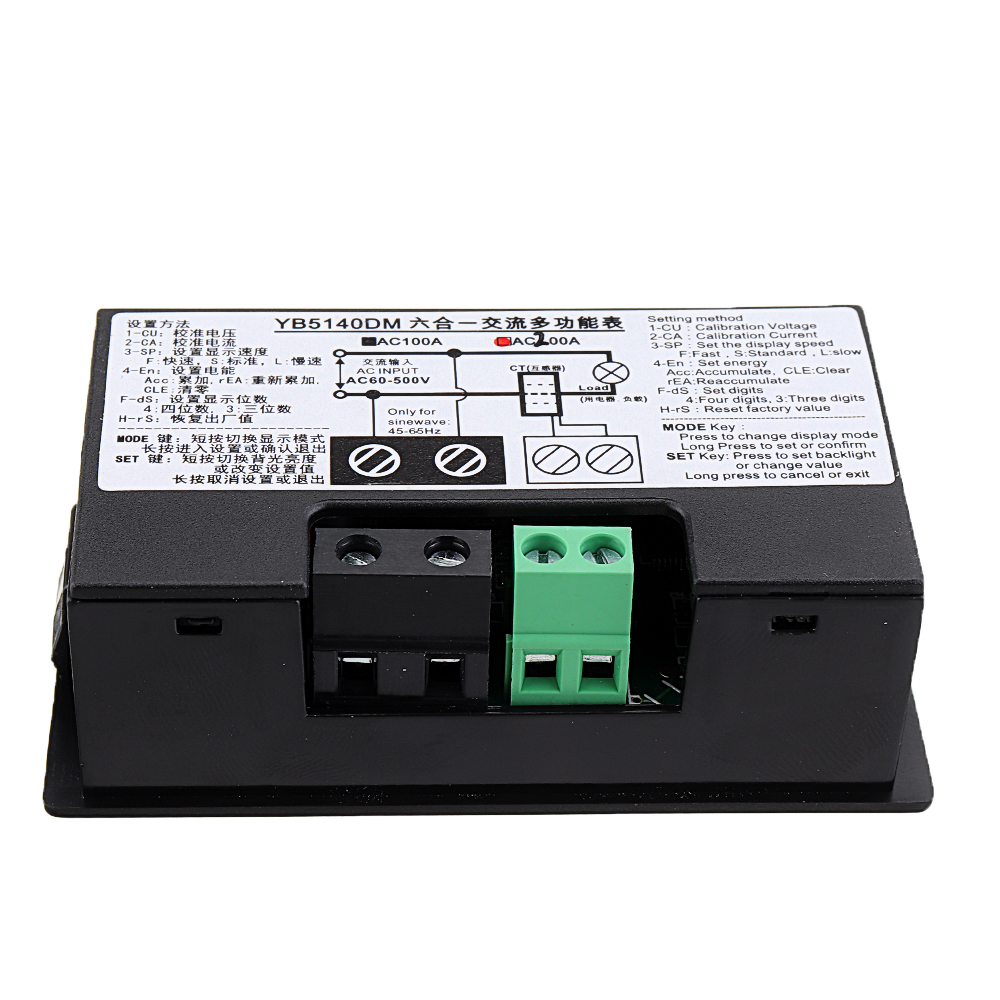

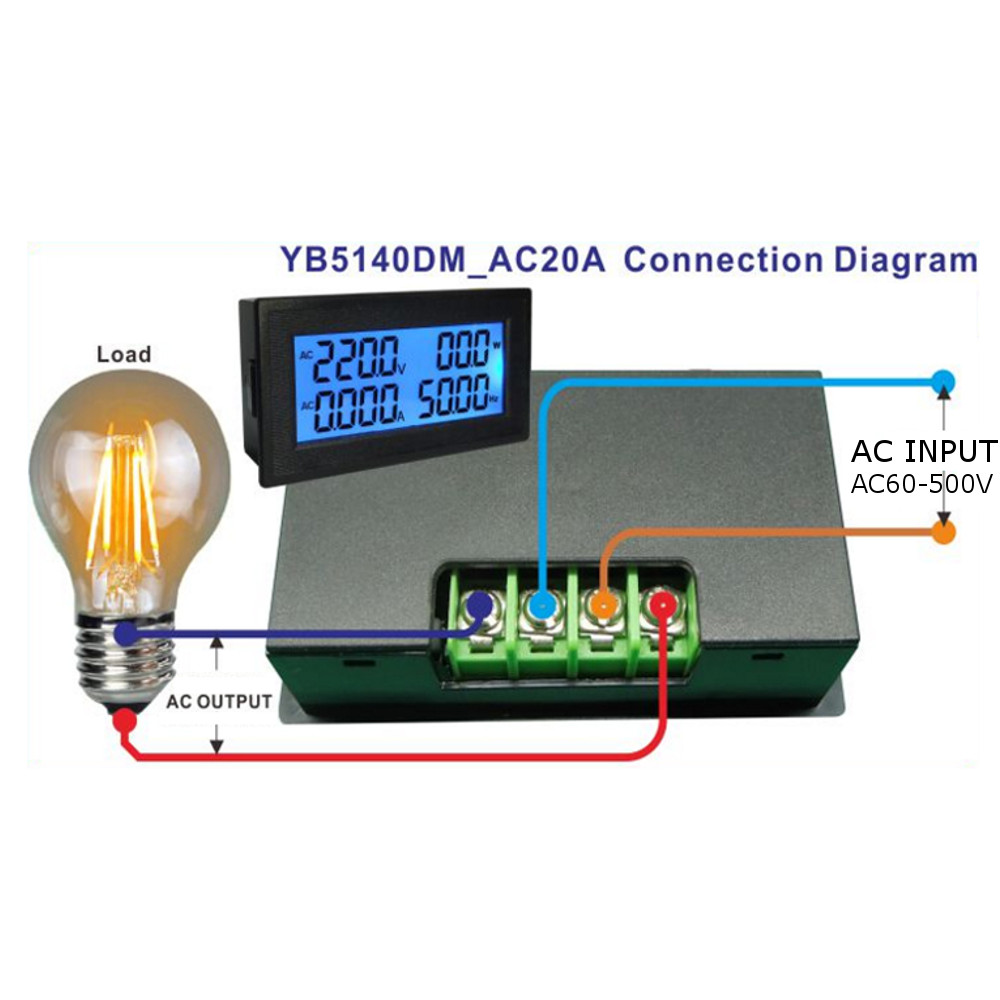

10. Simple wiring of the instrument: two wires in, two wires out: no need to connect additional power supply; current test does not need to purchase additional transformer or shunt, built-in high-precision shunt
11. Dimensions: 79*43*26mm
12. Installation opening size: 76*39.5mm
/RangeTest RangeResolutionRemark
VoltageAC60-500VAC 60.00-500.0 V<100V: 0.01V >100V: 0.1VAutomatic decimal shift
Accuracy: 0.5% +/- 2 words
CurrentAC20A (direct test)AC 0.000-20.00 A<10A: 0.001A >10A: 0.01A

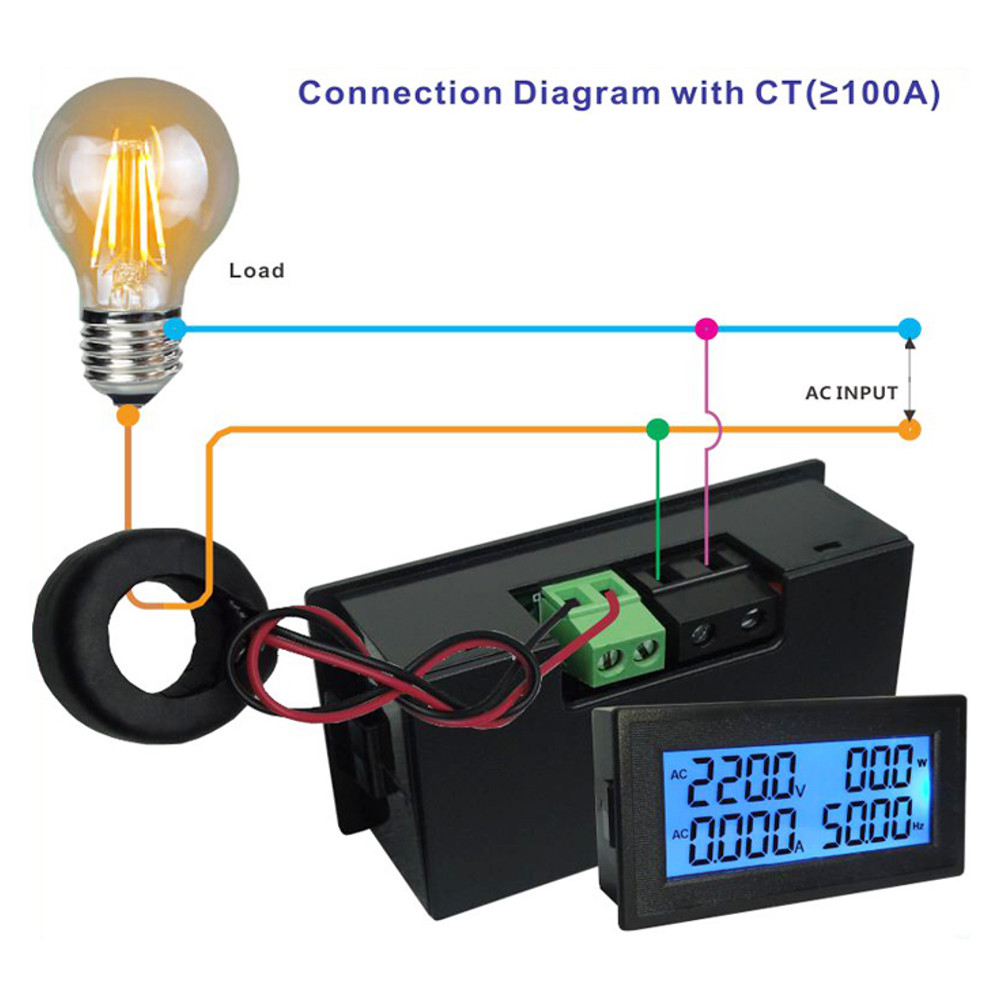

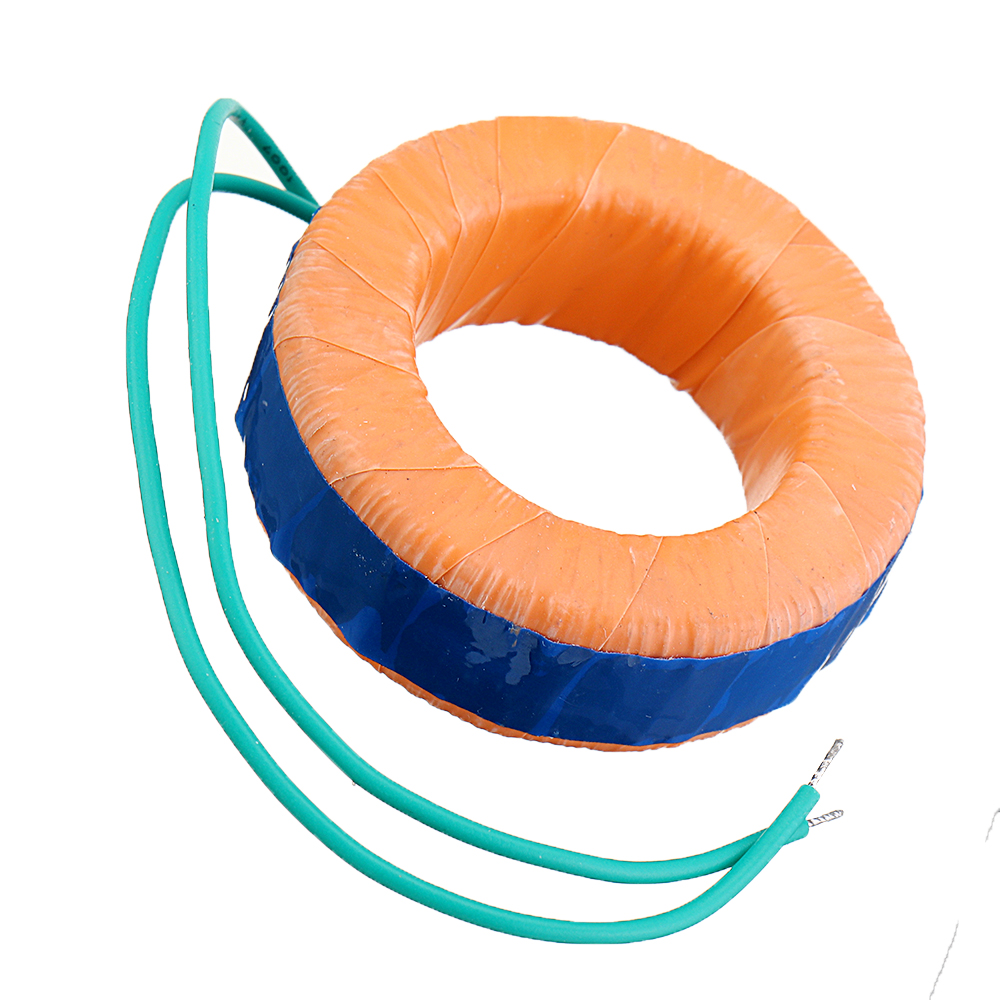

AC100A (instrument inner hole 16mm)AC 0.020-99.99 A<10A: 0.001A >10A: 0.01A
AC200A (instrument inner hole 26mm)AC 0.04-200.0 A<100A: 0.01A >100A: 0.1A
Active power 00.0-9999 KW00.0-999.9W: 0.1W
1000-9999W: 1W
010.0 KW-999.9KW: 0.1KW
>1000KW resolution is: 1KW
Automatic decimal shift
Frequency 45.00-65.00 Hz0.01 Hz
Power factor 0.000-1.0000.001
Electric energy 0.000-9999 KWh0.000-9.999 KWh: 0.001KWh
10.00-99.99 KWh: 0.01KWh
100.0 KWh - 999.9 KWh: 0.1KWh
>1000 KWh: 1KW
Automatic decimal shift

Extreme working conditions:
Working temperature: -10 ~ +50 ° C
Working humidity: 10~80% (no condensation)
Working pressure: 80 ~ 106kPa
Sunlight: no direct illumination

Package includes:

1 x Meter
