DC 12V-60V 2S-15S LCD Lead Acid Lithium Battery Voltmeter Power Meter Display Battery Capacity Indicator

Availability: In stock

Regular Price: IDR148,950.00

Special Price IDR82,750.00

You Save: IDR66,200.00 (44%)

Quick Overview

Applicable to the following specifications:
Lead acid battery can be used: 12V 24V 36V 48V
Lithium battery can be used: 2 string 3 string 4 string 5 string 6 string 7 string 8 string 9 string 10 string 11 string 12 string 13 string 14 string 15 string
The default 12V lead acid setting, you need to switch the battery specifications after receiving the goods, set by the back button
Press and hold the 5 button, then after powering on the meter, release the button to enter the setting.

Number of seriesNominal voltageFull charge
2 string lithium battery7.2V8.4V
3 string lithium battery10.8V12.6V
4 string lithium battery14.4V16.8V
5 string lithium battery18V21V
6 series lithium battery21.6V25.2V
7 string lithium battery24V29.4V
8 string lithium battery28.8V33.6V
9 string lithium battery32.4V37.8V
10 string lithium battery36V42V
11 string lithium battery39.6V46.2V
12 series lithium battery43.2V50.4V
13 string lithium battery48V54.6V
14 string lithium battery50.4V58.8V
15 string lithium battery54V63V
1. The product has reverse connection protection, and the reverse will not burn out.
2. Lead-acid battery lithium battery is universal, can be adjusted by the back button

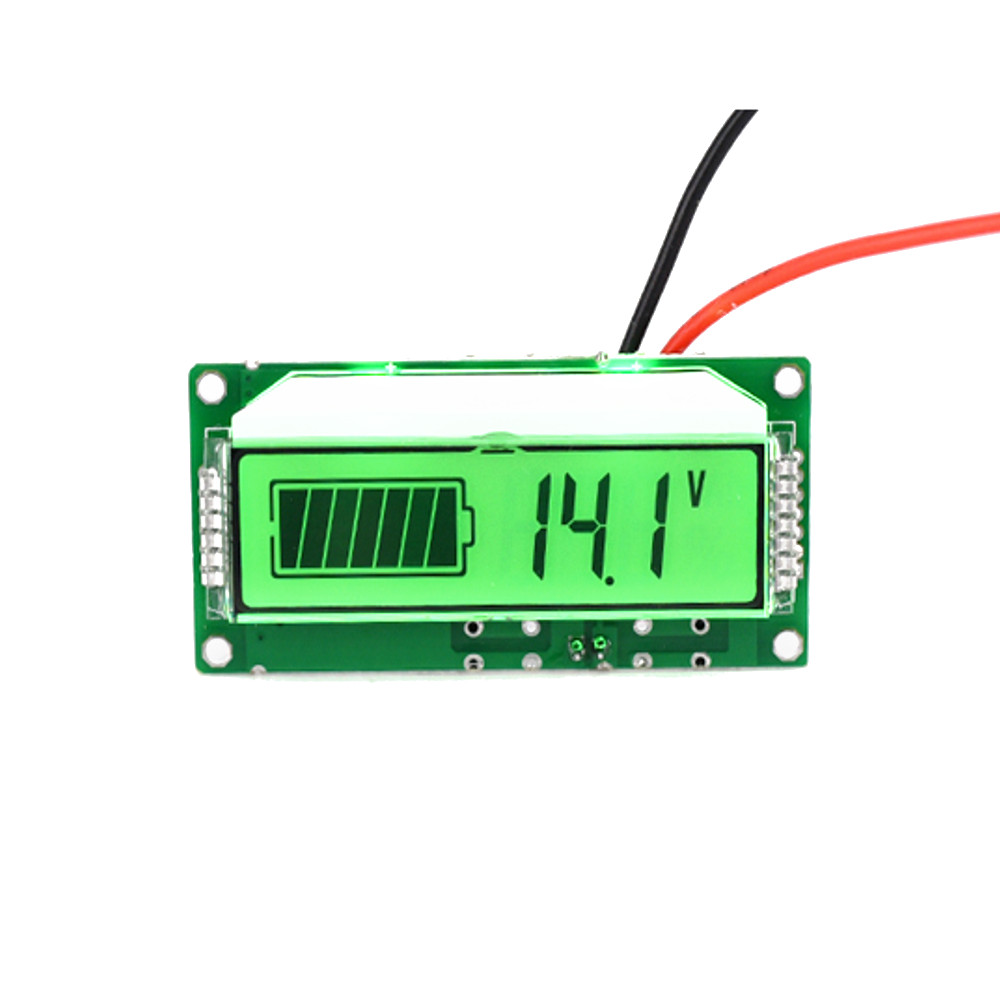

3. Can display battery symbol + percentage or battery symbol + voltmeter, two display modes can be switched at will
4. The product has only two wires, the wiring is simple, and there is a wiring socket, the wire length is 300mm.
5. All battery specifications and function selections are set via the back button, no soldering iron required
Widely applicable to:
Rapid detection of various instrumentation, measuring equipment, mobile portable equipment, sweeping machines, balance vehicles, battery vehicles and other lithium batteries, lead-acid battery pack capacity. Intuitive battery symbol display plus percentage accurate display. The high-contrast LCD screen can be clearly displayed in the dark or bright light for a long time. The lead-acid battery battery battery water battery winding battery lithium battery 18650 polymer can be used.

Package includes:

1 x Voltmeter


Additional Information

SKU GI/BG/1529556
Weight 0.0150
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
