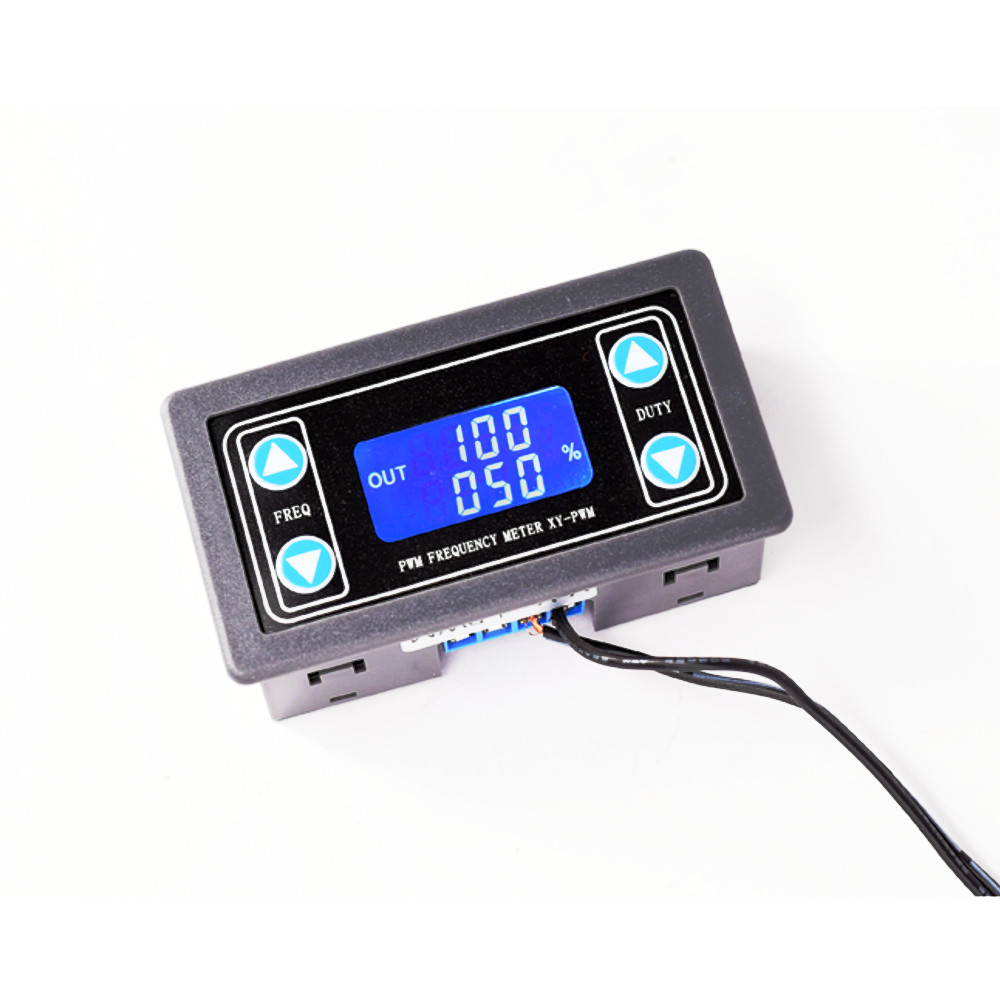

XY-PWM DC3.3-30V 1Hz~150KHz Digital Display Square Wave Rectangular Wave Pulse Signal Generator

Availability: In stock

Regular Price: IDR241,051.00

Special Price IDR133,917.00

You Save: IDR107,134.00 (44%)

Quick Overview

1. Protective Shell
2. LCD High Definition Display
3. Support UART
4. Supporting frequency adjustment
5. Support duty cycle adjustment
6. High accuracy detection
7. Supporting power-off memory function
8. 0.1 Channel PWM Output
9. Purpose: Device used as a signal source or excitation source in production practice

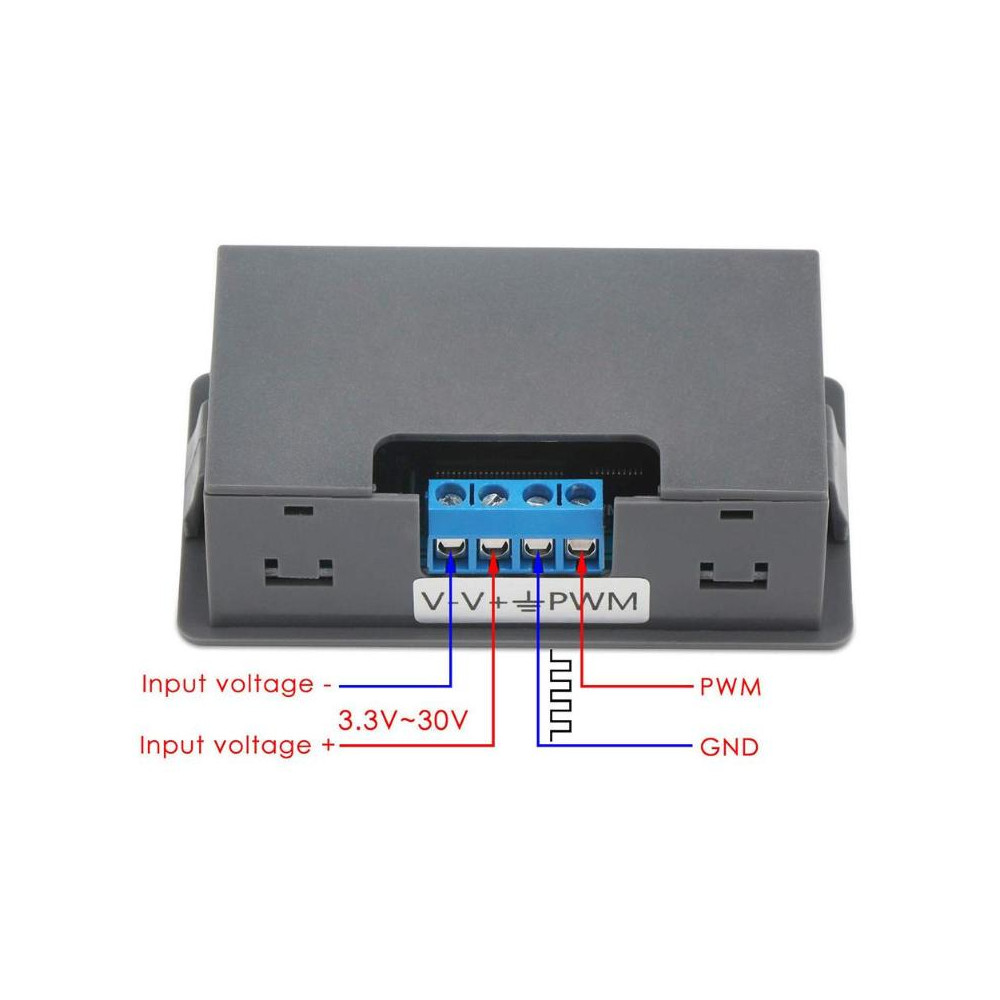

Working voltage: 3.3-30V
Frequency range: 1Hz~150KHz
Frequency accuracy: the accuracy in each range is about 2%
Signal load capacity: output current can be around 5~30ma
Output amplitude: PWM amplitude is equal to supply voltage
Ambient temperature: -20~70°C
Material: Plastics

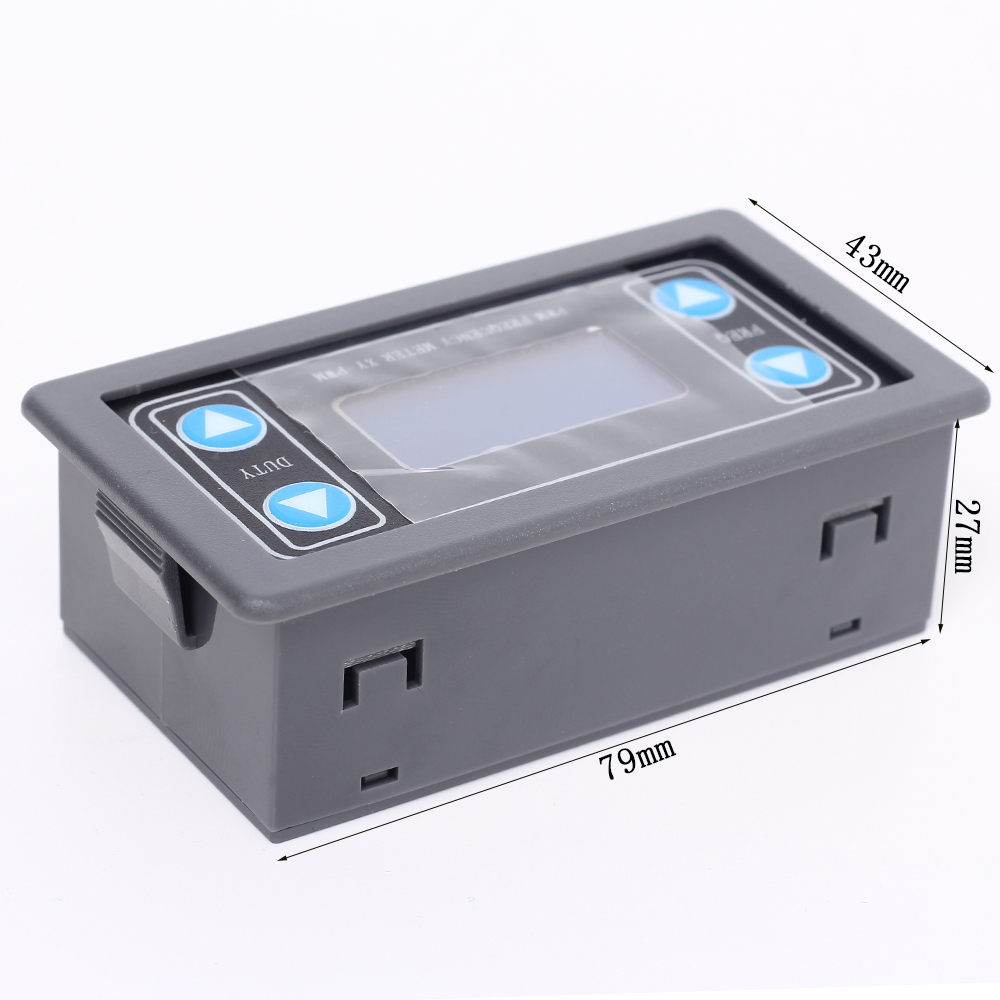

Size: 79*43*27mm/3.11*1.69*1.06"
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow slight measuring deviation due to manual measurement.

Package includes:

1 x Digital pwm signal generator


Additional Information

SKU GI/BG/1477049
Weight 0.0380
Last Update 04-September-2019
Estimated Delivery Time 7 to 14 days for Global Inventory
